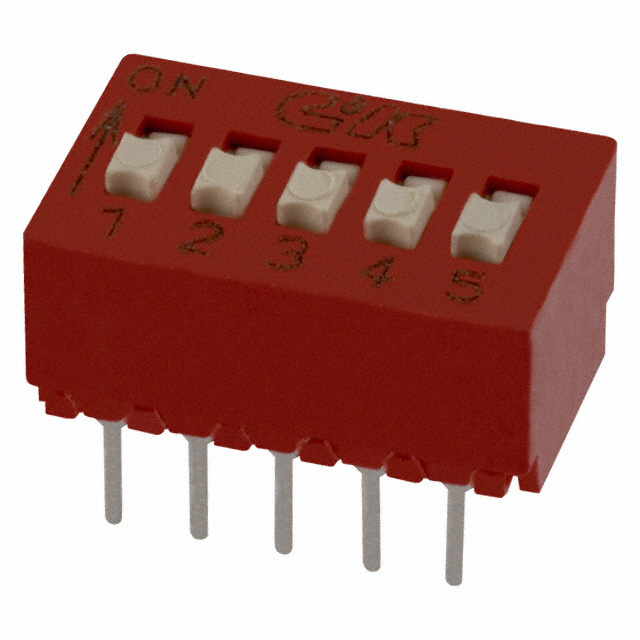

Dip Switches BD05 product image

BD05

Description：SWITCH SLIDE DIP SPST 0.1A 5V
Series：BD
Mfr：C&K
Package：Tube

SKU:567f927f10ae Category: DIP Switches Brand: C&K

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BD05 is listed in the Dip Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH SLIDE DIP SPST 0.1A 5V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for BD05

Description：SWITCH SLIDE DIP SPST 0.1A 5V
Series：BD
Mfr：C&K
Package：Tube
Circuit：SPST
Number of Positions：5
Current Rating (Amps)：100mA
Voltage Rating：5VDC
Actuator Type：Slide (Standard)
Actuator Level：Raised
Contact Material：Phosphor Bronze
Contact Finish：Gold
Height Above Board：0.297" (7.54mm)
Mounting Type：Through Hole
Termination Style：PC Pin
Pitch：0.100" (2.54mm), Full
Washable：Yes
Features：-
Operating Temperature：-40°C ~ 85°C

Dip Switches datasheet and documents for BD05

BD05
