BF100-20-A-C-0-0625-N-D

Headers, Receptacles, Female Sockets Overview

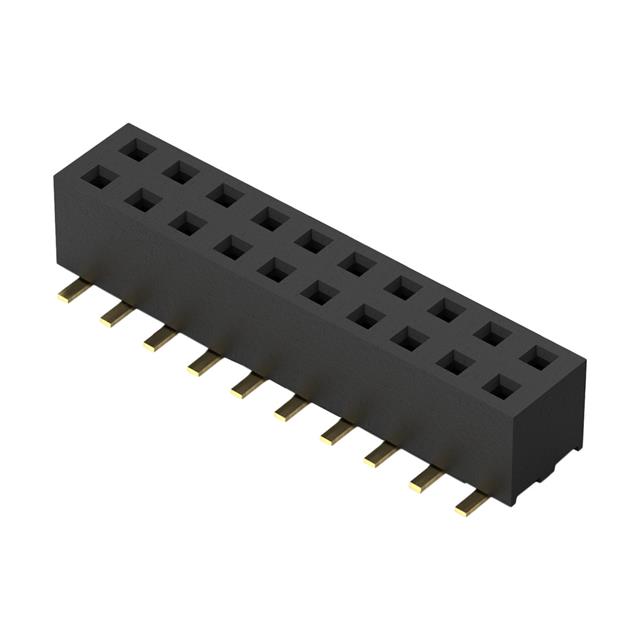

The GCT BF100-20-A-C-0-0625-N-D is a 20-position surface mount receptacle connector with a 2.00mm pitch. It features bottom or top entry orientation and gold-plated contacts. The component supports a current rating of 2A, contact resistance of 20mΩ, and dielectric withstand voltage of 500VAC. Operating temperature ranges from -40°C to 105°C. The housing material meets UL94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design compatible with pick-and-place assembly processes
• Gold-plated contacts ensure reliable electrical performance
• Dual entry configuration allows flexible board integration

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Consumer electronics assemblies
• Industrial control modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official GCT documentation to confirm exact pin count, plating thickness, and packaging format. Ensure compatibility with reflow soldering profiles specified in the datasheet. Confirm RoHS3 compliance status for regulatory adherence before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring a 2.00mm pitch SMT socket with 20 positions. Consider the 2A current rating and 500VAC dielectric strength for circuit requirements. Verify mechanical fit within the designated PCB footprint and ensure thermal stability meets the -40°C to 105°C operating range.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the GCT BF100 series of rectangular connectors designed for high-density board-to-board connections. The series offers various position counts and entry orientations. The BF100-20 variant specifically provides a 20-contact interface suitable for compact electronic designs requiring robust surface mount connectivity.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other GCT BF100 series parts with identical 2.00mm pitch and 20-position configurations. Verify equivalent electrical ratings and mechanical dimensions before substitution. Cross-reference official GCT cross-reference lists for confirmed interchangeable components.
