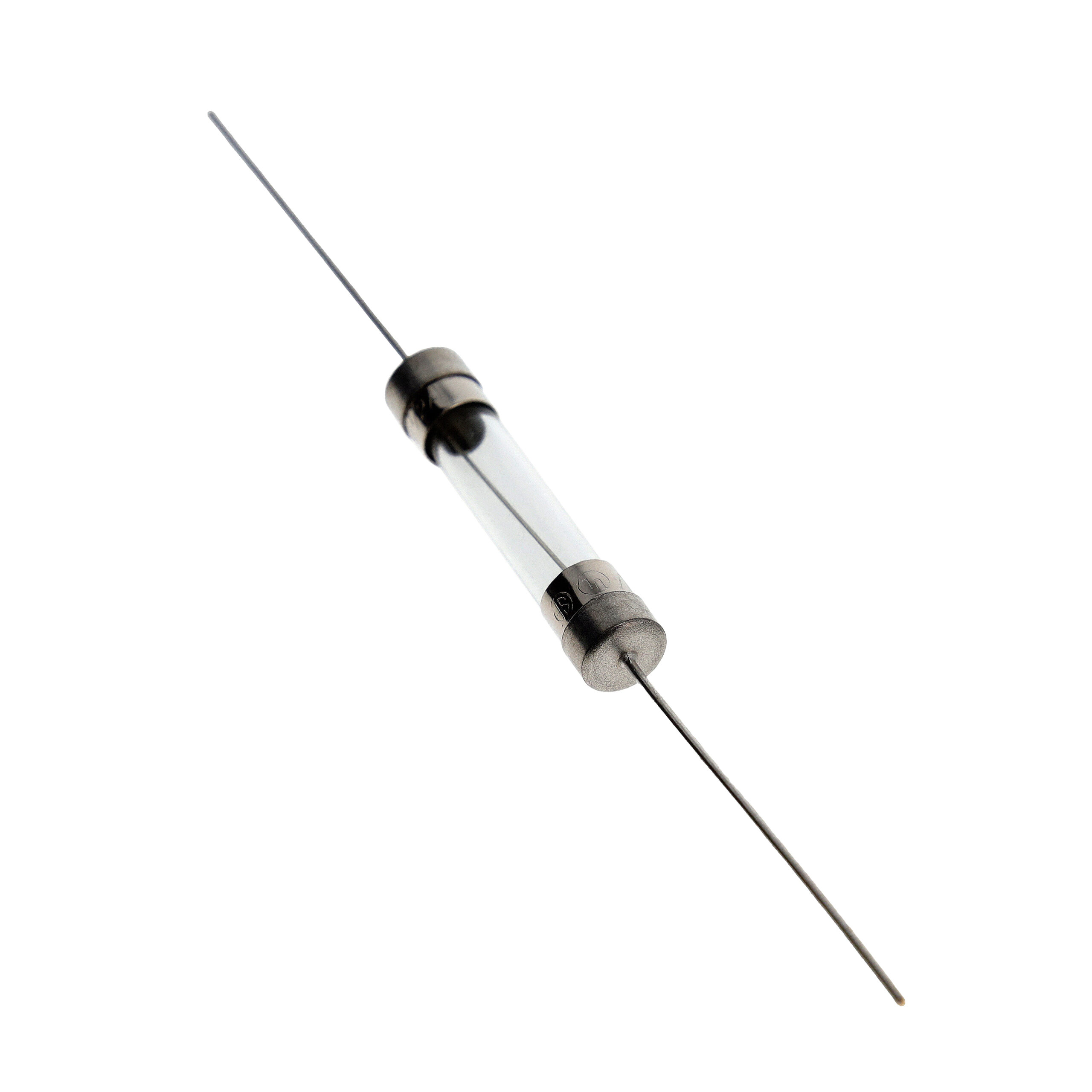

BK/AGC-V-7-1/2-R

BK/AGC-V-7-1/2-R is listed in the Fuses range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is FUSE GLASS 7.5A 250VAC 3AB 3AG. Review the specifications below when checking this part for your BOM.

Fuses specifications for BK/AGC-V-7-1/2-R

• Description：FUSE GLASS 7.5A 250VAC 3AB 3AG
• Series：AGC
• Mfr：Eaton - Electronics Division
• Package：Bulk
• Mounting Type：Through Hole
• Fuse Type：Cartridge, Glass
• Current Rating (Amps)：7.5 A
• Voltage Rating - DC：-
• Response Time：Fast Blow
• Package / Case：3AB, 3AG, 1/4" x 1-1/4" (Axial)
• Breaking Capacity @ Rated Voltage：200A
• Melting I²t：216
• Approval Agency：CSA, UL
• Operating Temperature：-55°C ~ 125°C
• Color：-
• Size / Dimension：0.266" Dia x 1.292" L (6.76mm x 32.82mm)
• Voltage Rating - AC：250 V

Fuses datasheet and documents for BK/AGC-V-7-1/2-R
