BKT-115-02-L-V-A-TR

$2.27

Description：CONN HEADER SMD 15POS 1MM
Series：BKT
Mfr：Samtec Inc.
Package：Tape & Reel (TR)

SKU:8bc89498f79a Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BKT-115-02-L-V-A-TR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 15POS 1MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for BKT-115-02-L-V-A-TR

Description：CONN HEADER SMD 15POS 1MM
Series：BKT
Mfr：Samtec Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.039" (1.00mm)
Number of Positions：15
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.065" (1.65mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.064" (1.63mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.8A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for BKT-115-02-L-V-A-TR

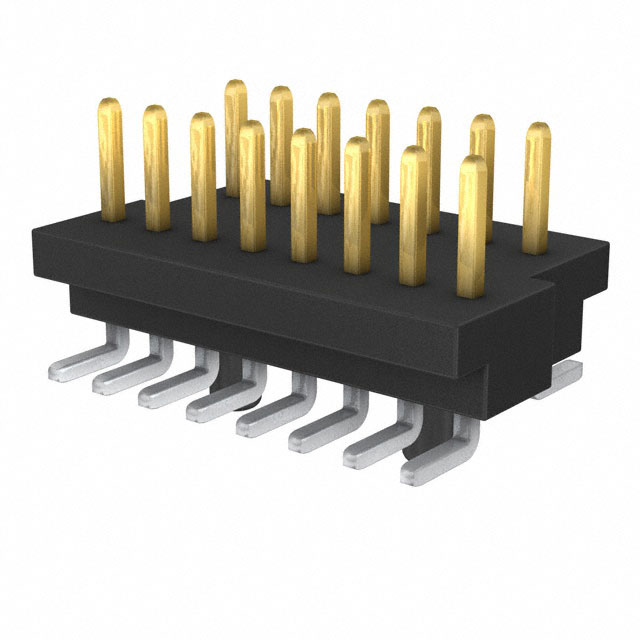

BKT-115-02-L-V-A-TR

Headers, Male Pins Overview

The BKT-115-02-L-V-A-TR is a surface-mount header connector manufactured by Samtec Inc. It features a 1.00 mm (0.039 inch) pitch with 29 positions arranged in two rows. The connector utilizes square post contacts with gold plating and phosphor bronze material, housed in black liquid crystal polymer insulation rated UL94 V-0. Designed for board-to-board stacking applications, it offers a push-pull locking mechanism and four-wall shielding. The unit supports a maximum current of 2.8 A per contact at 250 VAC, operating within a temperature range of -55°C to 125°C.
