BKT-123-01-L-V-S-A-P

Headers, Male Pins Overview

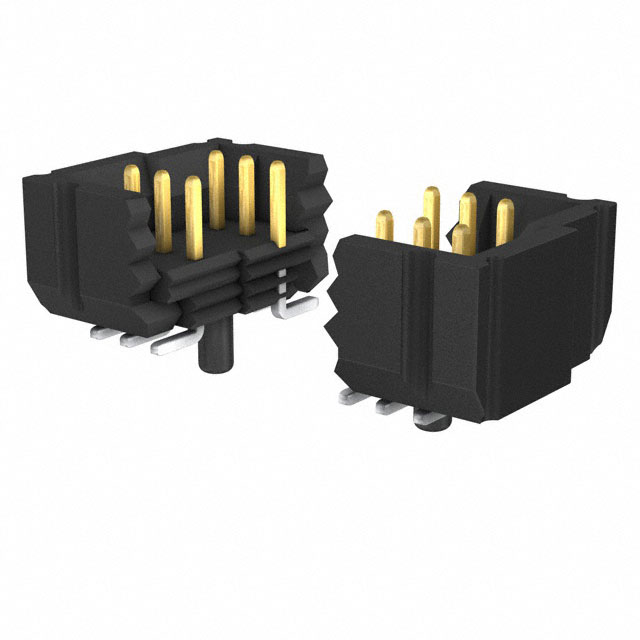

The BKT-123-01-L-V-S-A-P is a surface mount header connector from the Samtec BKT series, featuring 23 positions in a dual-row configuration. It utilizes a 1.00 mm (0.039 inch) contact pitch and a 2.54 mm (0.100 inch) row spacing. The connector employs square post contacts with gold plating for mating surfaces and tin plating for termination posts. Constructed with liquid crystal polymer insulation and phosphor bronze contacts, it supports a rated current of 2.8 A per contact. The assembly includes a four-wall shielded cover and is designed for board-to-board applications with a working temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Features a push-pull latching mechanism for secure board-to-board connection.
• Includes a four-wall shielded cover to provide electromagnetic interference protection.
• Utilizes low-cost gold plating options on square post contacts for reliable signal transmission.
• Designed for automated pick-and-place surface mount assembly processes.

Headers, Male Pins Applications

• Board-to-board interconnects in compact electronic modules
• High-density signal routing in industrial control systems
• Data communication equipment requiring shielded connections

Headers, Male Pins Procurement Notes

Verify that the specific suffixes match the required configuration, particularly the 'S' indicating the shielded cover and 'A' denoting the specific stacking height option. Confirm the packaging type corresponds to the tape and reel designation if automated assembly is planned. Ensure the lead time aligns with production schedules as standard delivery periods may vary based on manufacturing availability and regional distribution channels.

Headers, Male Pins Selection Notes

Select this component when a shielded, high-density header with a push-pull latch is required for surface mount applications. The 1.00 mm pitch allows for significant I/O density within a limited footprint. Consider the specific stacking height associated with the 'A' suffix to ensure proper clearance and mating compatibility with the corresponding BKS socket series. Verify thermal requirements against the -55°C to 125°C operating range.

Headers, Male Pins Part Context

This part belongs to the BKT series of 1.00 mm pitch micro-header strips manufactured by Samtec Inc. The series offers various stacking heights and shielding options to accommodate diverse mechanical constraints. It is specifically engineered to mate with the complementary BKS series sockets, providing a complete interconnect solution for dense, reliable board-to-board connections in modern electronics.

Headers, Male Pins Replacement Considerations

Direct substitutes include other BKT series headers with identical pin counts and pitch but different stacking heights or shielding configurations, such as BKT-123-01-L-V-S-P. Cross-series replacements like TSM are not electrically compatible due to differing pitch and contact geometry. Always verify mechanical dimensions and electrical ratings before substituting.

Headers, Male Pins FAQ

What is the function of the 'S' suffix in the part number?

The 'S' suffix indicates that the connector includes a four-wall shielded cover, which provides electromagnetic interference protection for the signal lines.

What type of latching mechanism does this connector use?

The BKT-123-01-L-V-S-A-P utilizes a push-pull latching system to secure the connection between the header and the mating socket.
