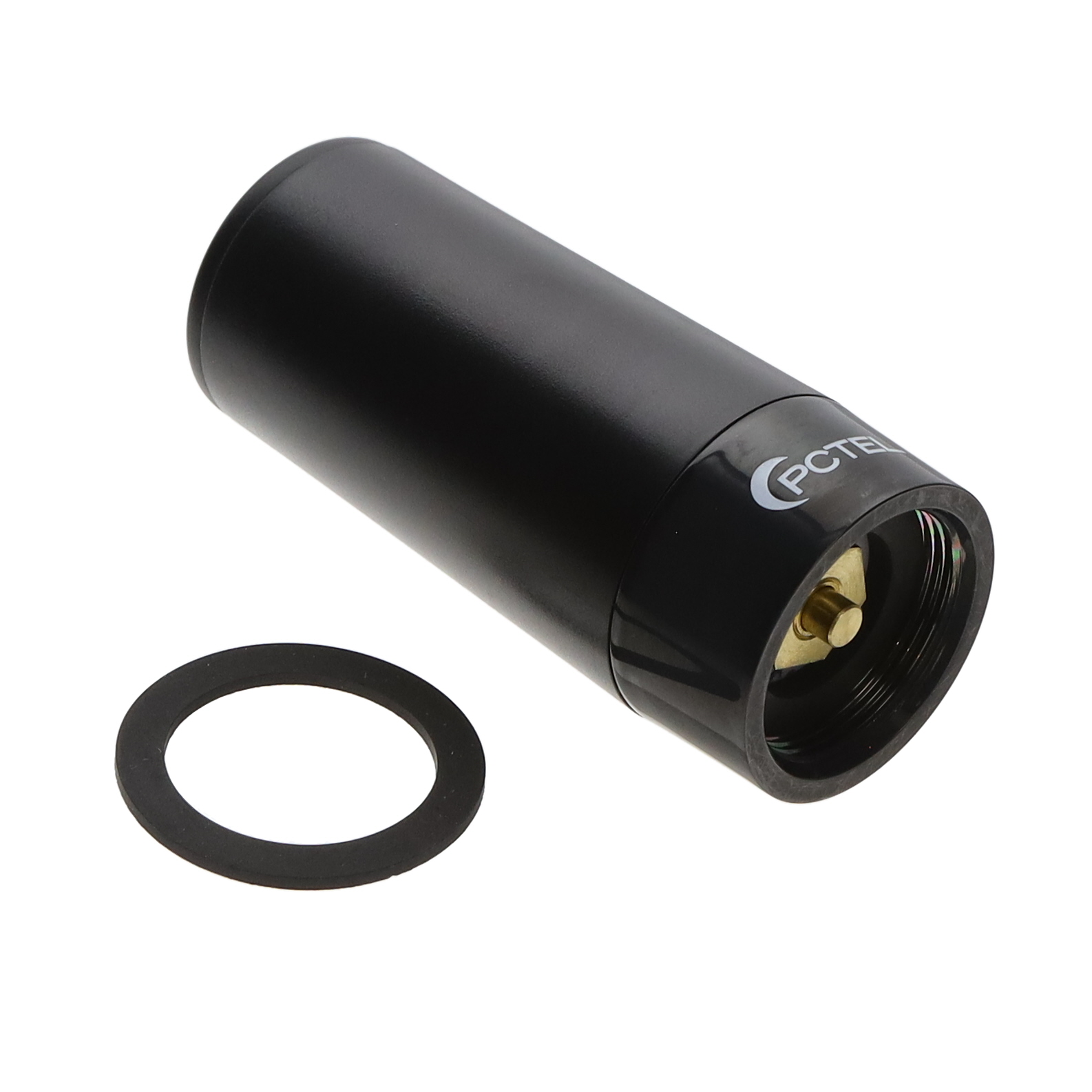

BMLPV380

$32.93

Description：RF ANT 395MHZ DOME PANEL MNT
Series：BMLPV
Mfr：Amphenol PCTEL
Package：Bag

SKU:25aab2054aa1 Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BMLPV380 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 395MHZ DOME PANEL MNT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BMLPV380

Description：RF ANT 395MHZ DOME PANEL MNT
Series：BMLPV
Mfr：Amphenol PCTEL
Package：Bag
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：395MHz
Frequency Range：380MHz ~ 410MHz
Antenna Type：Dome
Number of Bands：1
VSWR：2
Return Loss：-
Gain：1dBi
Features：-
Termination：-
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：3.380" (85.85mm)
Applications：-
Power - Max：100 W

Antennas RF datasheet and documents for BMLPV380

BMLPV380

Antennas RF Overview

The Amphenol PCTEL BMLPV380 is a low-profile dome panel mount RF antenna designed for UHF applications. It operates within the 380 MHz to 410 MHz frequency range, with a center frequency of 395 MHz. The component supports 2G, 3G, 4G, and 5G cellular protocols including LTE and NB-IoT. It features a power rating of 100 W and functions reliably across an operating temperature range from -40°C to +85°C. This single-band antenna provides superior pattern coverage for mobile and fixed installations.

Antennas RF Feature Summary

Low-profile dome design suitable for panel mounting
Superior pattern coverage for mobile and fixed applications
Supports multiple cellular protocols including LTE and NB-IoT

Antennas RF Applications

Mobile communication systems
Fixed wireless installations
Industrial IoT connectivity
UHF band network infrastructure

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required interface types and cable configurations. Confirm that the active status aligns with long-term supply requirements. Cross-reference the 18-week standard lead time with project schedules to avoid delays. Ensure environmental ratings meet the installation site specifications regarding temperature extremes and weather exposure.

Antennas RF Selection Notes

Select this model when a low-profile aesthetic and robust performance are required for UHF band operations. The 100 W power handling capability suits high-output transmitter environments. Consider the -40°C to +85°C operational range for harsh outdoor or industrial settings. Verify that the 380-410 MHz bandwidth matches the target network frequency allocation before integration into the system design.

Antennas RF Part Context

This component belongs to the BMLPV series of low-profile antennas manufactured by Amphenol PCTEL. The series focuses on providing reliable wireless connectivity solutions for various cellular standards. As part of the broader Amphenol portfolio, these antennas integrate advanced RF engineering to support modern communication protocols in demanding environments.
