BOA34006NM

Antennas RF Overview

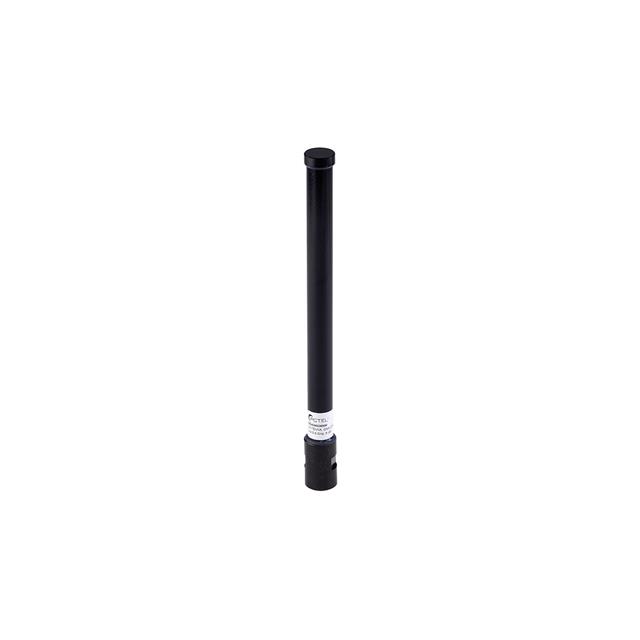

The BOA34006NM is a heavy-duty omnidirectional base station antenna designed for CBRS applications. It operates within the 3.4 GHz to 3.8 GHz frequency range with a nominal gain of 6 dBi. The unit features an N-type male connector and utilizes a straight whip configuration. Constructed with carrier-grade fiberglass, it supports spectrum sharing protocols. The antenna is rated for outdoor deployment and includes a mast mount interface, though mounting hardware is sold separately.

Antennas RF Feature Summary

• Heavy-duty construction using carrier-grade fiberglass materials
• Omnidirectional radiation pattern optimized for base station coverage
• Integrated N-type male connector for direct cable attachment
• Designed specifically for CBRS spectrum sharing environments

Antennas RF Applications

• CBRS base station deployments
• Spectrum sharing network infrastructure
• Outdoor wireless communication systems
• Carrier-grade signal distribution

Antennas RF Procurement Notes

Verify that the specific suffix NM indicates the N-type male connector variant required for your system architecture. Confirm that mast mounts are purchased separately as they are not included in the standard package. Ensure the operating environment aligns with the outdoor rating specifications provided by the manufacturer.

Antennas RF Selection Notes

Select this model when a robust, omnidirectional solution is needed for the 3.4-3.8 GHz band. The 6 dBi gain provides balanced coverage for typical base station scenarios. Consider the mechanical requirements for mast mounting, as separate hardware is necessary for installation.

Antennas RF Part Context

This component belongs to the PCTEL VENU series of heavy-duty antennas. The series focuses on durable outdoor solutions for wireless infrastructure. The BOA34006NM represents a specific frequency variant within the broader CBRS antenna portfolio offered by Amphenol PCTEL.

Antennas RF Replacement Considerations

The BOA34006NF serves as a functional substitute with identical electrical characteristics but utilizes an N-type female connector. Verify connector compatibility before swapping between these variants.
