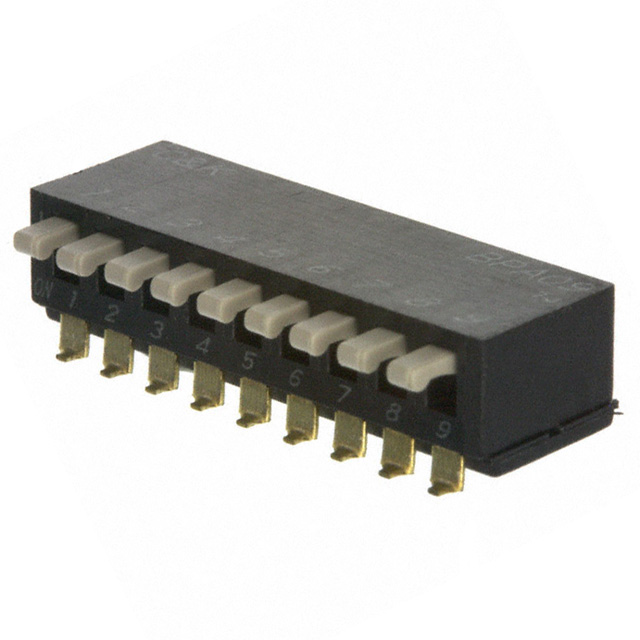

Dip Switches BPA09SB product image

BPA09SB

$3.64

Description：SWITCH PIANO DIP SPST 0.1A 5V
Series：BPA
Mfr：C&K
Package：Tube

SKU:1e6c8b00c82b Category: DIP Switches Brand: C&K

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BPA09SB is listed in the Dip Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH PIANO DIP SPST 0.1A 5V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for BPA09SB

Description：SWITCH PIANO DIP SPST 0.1A 5V
Series：BPA
Mfr：C&K
Package：Tube
Circuit：SPST
Number of Positions：9
Current Rating (Amps)：100mA
Voltage Rating：5VDC
Actuator Type：Piano
Actuator Level：Raised
Contact Material：Beryllium Copper
Contact Finish：Gold
Height Above Board：0.274" (6.95mm)
Mounting Type：Surface Mount, Right Angle
Termination Style：Gull Wing
Pitch：0.100" (2.54mm), Full
Washable：Yes
Features：-
Operating Temperature：-20°C ~ 85°C

Dip Switches datasheet and documents for BPA09SB

BPA09SB

Explore related parts through Switches, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.

BPA09SB

$3.64
