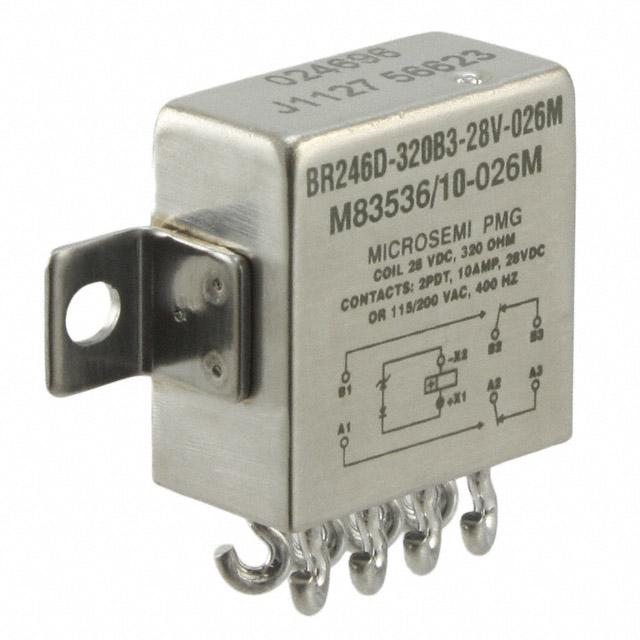

Power Relays, Over 2 Amps BR246D-320B3-28V-026M product image

BR246D-320B3-28V-026M

Description：RELAY GEN PURPOSE DPDT 10A 28V
Series：BR246D
Mfr：Microsemi Corporation
Package：Box

SKU:c0134a18e144 Category: Power Relays, Over 2 Amps Brand: Microsemi Corporation

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BR246D-320B3-28V-026M is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Microsemi Corporation. Its product description is RELAY GEN PURPOSE DPDT 10A 28V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for BR246D-320B3-28V-026M

Description：RELAY GEN PURPOSE DPDT 10A 28V
Series：BR246D
Mfr：Microsemi Corporation
Package：Box
Mounting Type：Chassis Mount
Coil Voltage：28VDC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：10:00 AM
Switching Voltage：208VAC, 28VDC - Max
Load - Max Switching：2080VA, 280W
Coil Current：87.5 mA
Coil Type：Non Latching
Features：-
Termination Style：Solder Hook
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：18 VDC
Must Release Voltage：5.1 VDC
Operating Temperature：-70°C ~ 125°C
Contact Material：-
Approval Agency：-
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：15 ms
Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for BR246D-320B3-28V-026M

BR246D-320B3-28V-026M
