BWPS003838291R8M00

Fixed Inductors Overview

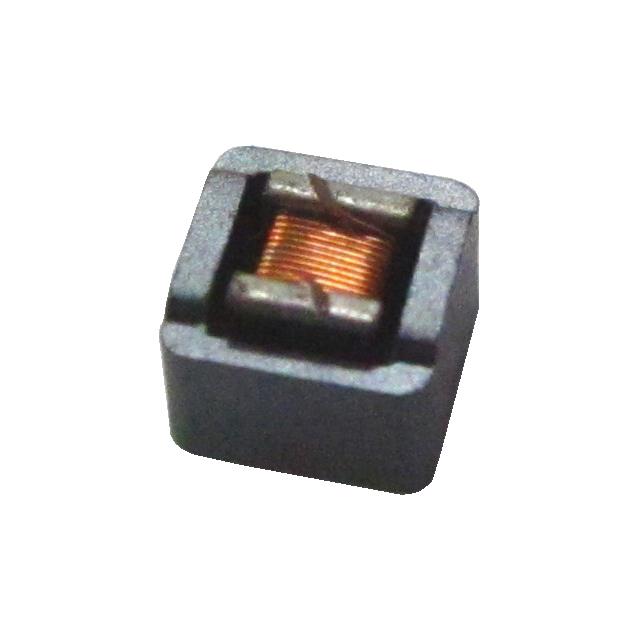

The BWPS003838291R8M00 is an unshielded surface-mount RF inductor from Pulse Electronics, utilizing a wire-wound ferrite core construction. It features a nominal inductance of 1.8 uH with a tolerance of 20%. The component supports a maximum DC current of 900 mA and exhibits a maximum DC resistance of 580 mOhms. Its self-resonant frequency is specified at 225 MHz, with a minimum Q factor of 28. Designed for PCB mounting, it operates within a temperature range of -40 C to +105 C and is supplied in reel packaging.

Fixed Inductors Feature Summary

• Wire-wound ferrite core construction provides magnetic shielding characteristics suitable for high-current applications.
• Unshielded SMD design facilitates integration into compact RF circuits and base station architectures.

Fixed Inductors Applications

• Notebook computers
• Base stations
• GPS receivers

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Pulse Electronics documentation to ensure compatibility with target circuit requirements. Confirm that the unshielded configuration aligns with electromagnetic interference constraints. Check RoHS compliance status through authorized distributors or direct manufacturer channels prior to procurement. Ensure storage and handling procedures adhere to moisture sensitivity level guidelines for surface-mount components.

Fixed Inductors Selection Notes

Select this component when designing RF circuits requiring a 1.8 uH inductance with high current handling capabilities up to 900 mA. The unshielded wire-wound structure is appropriate for applications where magnetic field containment is not critical but high Q performance is desired. Consider the 225 MHz self-resonant frequency limit for signal integrity in higher frequency designs. Evaluate thermal management needs given the +105 C maximum operating temperature rating.

Fixed Inductors Part Context

This component belongs to the BWPS series of power chip inductors manufactured by Pulse Electronics. These inductors are characterized by their wire-wound ferrite construction, which offers robust performance in demanding environments. The series is tailored for RF and power applications, providing reliable inductance values with specific current ratings. The BWPS003838291R8M00 represents a specific variant optimized for 1.8 uH applications within this broader product family.

Fixed Inductors Replacement Considerations

Consult official Pulse Electronics substitution guides for verified alternative part numbers. Cross-reference specifications such as inductance, current rating, and physical dimensions to ensure functional equivalence. Verify that any substitute maintains the same package type and terminal configuration for seamless PCB integration.
