BZT52C3V6

Single Zener Diodes Overview

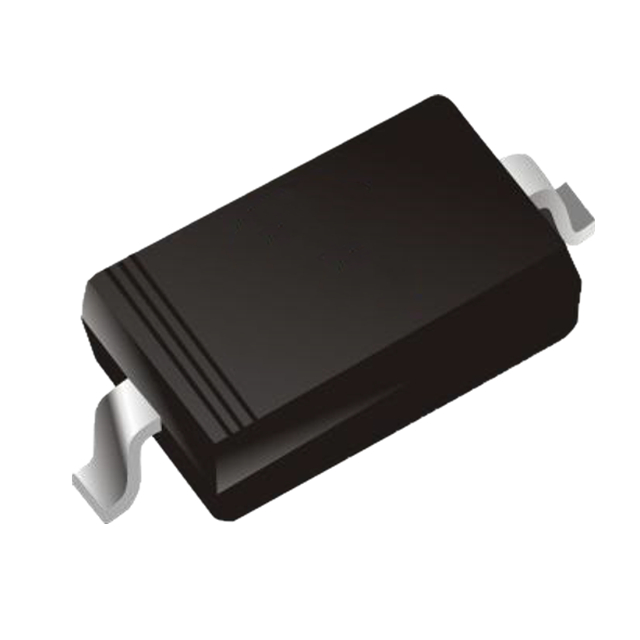

The BZT52C3V6 is a unidirectional silicon Zener diode manufactured by NextGen Components in the SOD-123 surface-mount package. It features a nominal Zener voltage of 3.6V with a tolerance range of 3.4V to 3.8V, tested at a current of 5mA. The device supports a maximum power dissipation of 500mW and operates within a junction temperature range of -65°C to +150°C. Electrical characteristics include a maximum dynamic impedance of 130Ω and a reverse leakage current of 10μA at 3V.

Single Zener Diodes Feature Summary

• Planar die construction for general-purpose medium current applications
• Small plastic SOD-123 package suitable for automated surface mount assembly
• Compliant with RoHS III and REACH regulations, halogen-free

Single Zener Diodes Applications

• Voltage regulation circuits
• Clamping and protection applications
• Reference voltage generation

Single Zener Diodes Procurement Notes

Verify the specific ordering suffix (e.g., 1S0W4) against the datasheet to confirm marking codes and packaging details. Confirm compliance requirements such as RoHS III and REACH status directly with the manufacturer or authorized distributor before finalizing procurement specifications.

Single Zener Diodes Selection Notes

Select this component for designs requiring a 3.6V reference in a compact SMD footprint. Ensure the circuit design accommodates the 500mW power dissipation limit and verify that the operating environment remains within the specified -65°C to +150°C temperature range for reliable performance.

Single Zener Diodes Part Context

This part belongs to the BZT52C series of small signal Zener diodes offered by NextGen Components. The series provides a wide voltage range from 2.0V to 75V in the SOD-123 case, designed for surface-mounted applications requiring standard tolerance and moderate power handling capabilities.

Single Zener Diodes Replacement Considerations

The datasheet lists MDD/BZT52C3V6 as a cross-reference part number. Verify pinout compatibility and electrical parameters with alternative manufacturers before substitution.

Single Zener Diodes FAQ

What is the maximum dynamic impedance for the BZT52C3V6?

The maximum dynamic impedance (ZZT) at the test current of 5mA is 130Ω.

Is the BZT52C3V6 lead-free?

Yes, the product is totally lead-free and fully RoHS compliant according to the specification sheet.
