BZX784C6V2-TP

Single Zener Diodes Overview

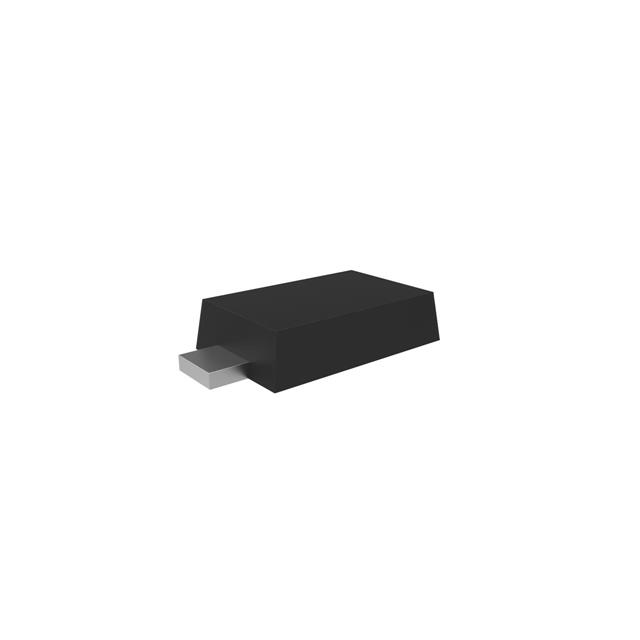

The BZX784C6V2-TP is a single Zener diode manufactured by Micro Commercial Components (MCC). It features a nominal Zener voltage of 6.2 V with a power dissipation rating of 150 mW. The device is housed in an SOD-723 surface-mount package and operates within a temperature range of -55°C to +150°C junction temperature.

Single Zener Diodes Feature Summary

• Compact SOD-723 surface-mount packaging for space-constrained designs
• High thermal stability supporting operation up to 150°C junction temperature
• Standardized 6.2 V regulation for reference applications

Single Zener Diodes Applications

• Voltage reference circuits
• Over-voltage protection
• Clamping applications

Single Zener Diodes Procurement Notes

Verify the specific datasheet version for the BZX784C6V2-TP, as MCC product portfolios undergo periodic reviews. Confirm RoHS compliance status and exact electrical tolerances against the official manufacturer documentation prior to final design integration to ensure alignment with current production specifications.

Single Zener Diodes Selection Notes

Select this component when a low-power, compact Zener solution is required for 6.2 V regulation. The SOD-723 footprint offers a smaller alternative to standard SOT-23 packages. Ensure the circuit design accounts for the 150 mW power limit and the specific leakage characteristics defined in the official datasheet.

Single Zener Diodes Part Context

This part belongs to the MCC BZX784 series of Zener diodes. The series provides various voltage options in the SOD-723 package, targeting general-purpose discrete semiconductor applications requiring small form factors and reliable voltage regulation performance from Micro Commercial Components.

Single Zener Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing should be performed using official parameter equivalence tables or authorized distributor substitution tools.
