C47

Antennas RF Overview

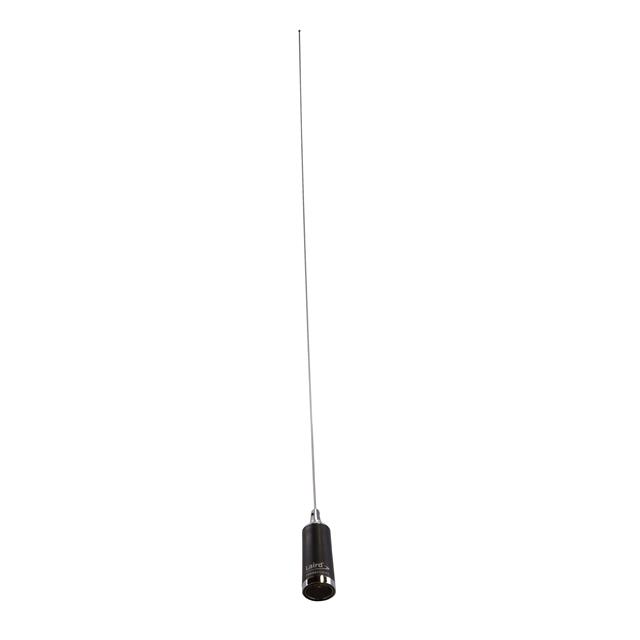

The TE Connectivity C47 is a mobile whip antenna designed for operation within the 47.50 MHz frequency range. It features a 1/4 wave base-loaded configuration with a straight whip element constructed from 17-7PH stainless steel. The antenna provides 0 dB gain and supports up to 200 watts of power handling capacity. It utilizes an NMO base mount for secure installation on vehicle surfaces.

Antennas RF Feature Summary

• Straight whip design for compact profile
• Base-loaded construction for efficient radiation
• Stainless steel whip material for durability

Antennas RF Applications

• Mobile two-way radio communications
• VHF band vehicle installations
• Emergency service vehicle antennas

Antennas RF Procurement Notes

Verify the specific frequency tolerance and power rating requirements against the official TE Connectivity datasheet before procurement. Ensure the NMO base mount interface matches the intended vehicle mounting hardware. Confirm compliance with relevant environmental and safety standards for the deployment location.

Antennas RF Selection Notes

Select this model when a robust, high-power mobile antenna is required for the 47-50 MHz band. The stainless steel construction offers resistance to corrosion and physical damage. Consider the NMO mounting style for reliable grounding and stability in mobile environments.

Antennas RF Part Context

This component belongs to the TE Connectivity RF antenna portfolio, specifically targeting mobile communication applications. It is part of a series of base-loaded whips designed for VHF frequencies, offering a balance between performance and mechanical durability for vehicular use.

Antennas RF Replacement Considerations

Consult TE Connectivity documentation for direct cross-reference models within the same frequency and power class. Verify mechanical compatibility of the NMO base and electrical impedance matching before substituting with alternative brands or series.
