CA.50

Antennas RF Overview

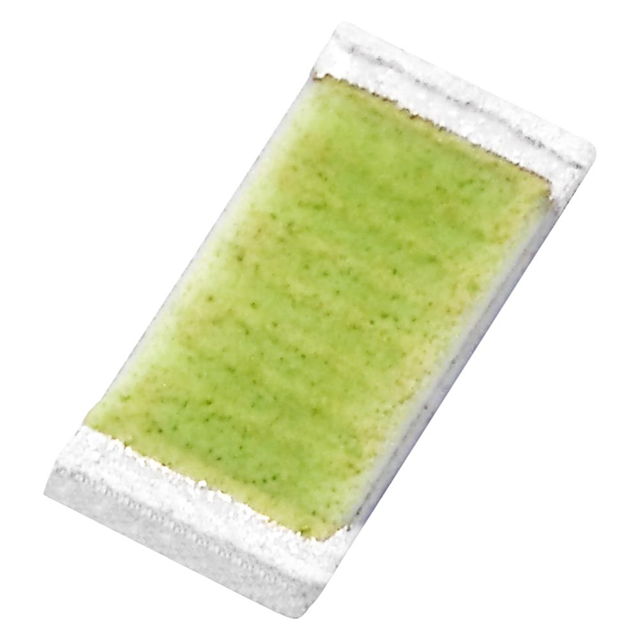

The CA.50 is a ceramic chip monopole antenna manufactured by Taoglas Limited, designed for wireless local area network applications. It operates within the frequency range of 5.15GHz to 5.9GHz, covering standard Wi-Fi and high-bandwidth bands. The component features a surface mount package with dimensions of 3.2mm x 1.6mm x 0.5mm. Electrical specifications include a voltage standing wave ratio of 2 and a return loss of -17dB. It is engineered for integration into compact electronic devices requiring reliable 5GHz connectivity.

Antennas RF Feature Summary

• Utilizes ceramic material construction for stable RF performance in compact form factors
• Designed specifically for WLAN and high-bandwidth 5GHz application environments
• Supports surface mount technology for automated PCB assembly processes

Antennas RF Applications

• Wi-Fi enabled consumer electronics
• WLAN modules and access points
• High bandwidth data transmission devices

Antennas RF Procurement Notes

Verify the specific ordering suffix and packaging configuration when sourcing this component. Ensure that the procurement channel provides original manufacturer documentation to confirm authenticity. Cross-reference the part number with official distributor catalogs to validate current availability status and technical datasheet revisions before finalizing purchase orders.

Antennas RF Selection Notes

Select this antenna for designs requiring a low-profile solution for 5GHz band operations. Consider the physical dimensions of 3.2mm x 1.6mm x 0.5mm during layout planning. Ensure the host circuit design supports the required impedance matching for optimal VSWR performance. Evaluate thermal constraints as the operating temperature range must align with the device's environmental requirements.

Antennas RF Part Context

This component belongs to the category of RF antennas, specifically ceramic chip types. It serves as a passive radiating element for wireless communication systems. The product line focuses on miniaturized solutions for modern portable and embedded electronics. It complements other RF components by providing efficient signal radiation in constrained spaces.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative antennas based on frequency range, gain, and physical footprint if substitution is necessary.
