CDB52211AM

Antennas RF Overview

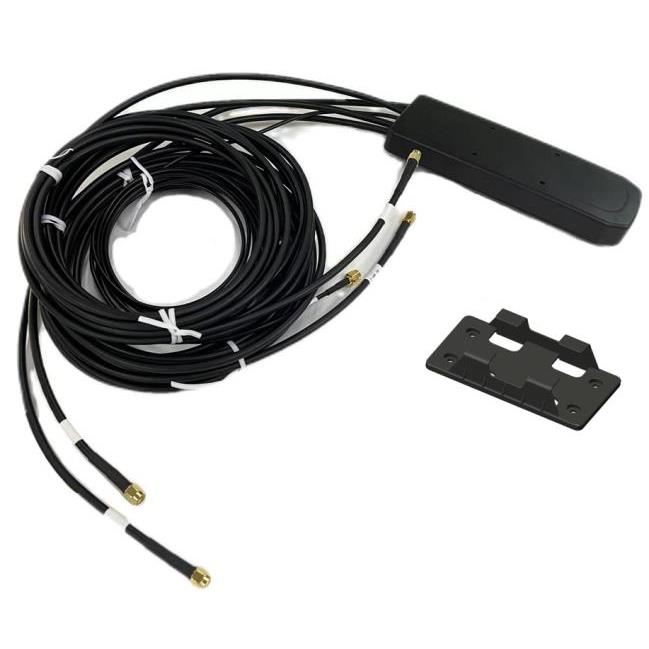

The CDB52211AM is a covert vehicular antenna manufactured by Pulse Electronics, designed for multi-band wireless communication. It integrates five distinct functions within a single unit: two channels for 5G New Radio (NR) and LTE, two channels for Wi-Fi, and one channel for Global Navigation Satellite System (GNSS). The component operates across frequency ranges including 5.15GHz to 7.125GHz for cellular applications. It features linear, vertical, and right-hand circular polarization options. Physical dimensions are 178mm in length, 60mm in width, and 19mm in height. Connectivity is provided via RP-SMA male and SMA male connectors.

Antennas RF Feature Summary

• Integrates five distinct radio functions into a single compact unit for simplified installation
• Supports multiple wireless standards including 5G NR, LTE, Wi-Fi, and GNSS simultaneously
• Designed specifically for covert vehicular mounting with adhesive or bracket attachment methods

Antennas RF Applications

• Vehicular communications systems requiring integrated cellular and satellite connectivity
• IoT gateways needing combined 5G/LTE and Wi-Fi uplink capabilities
• Mobile tracking devices utilizing GNSS positioning alongside data transmission

Antennas RF Procurement Notes

Verify the specific polarization requirement (linear, vertical, or RHCP) against system design specifications before ordering. Confirm connector types match interface requirements. Ensure environmental compliance with RoHS3 standards. Check datasheet for precise frequency band alignment with regional regulatory requirements.

Antennas RF Selection Notes

Select this model when space constraints require consolidating multiple antennas into a single form factor. Consider the physical dimensions of 178x60x19mm for vehicle integration. Evaluate the need for both RP-SMA and SMA interfaces in the host device design. Assess whether the integrated GNSS functionality meets accuracy needs compared to dedicated high-precision units.

Antennas RF Part Context

This component belongs to Pulse Electronics' RF antenna portfolio, specifically targeting the vehicular and mobile communications sector. It addresses the market demand for reducing antenna clutter in vehicles by combining disparate wireless technologies into one housing. The product supports modern connectivity standards essential for connected car technologies.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting hardware and cable assemblies if replacing legacy single-band antennas.
