CFS60383P-30NF

$35.89

Description：RF ANT PANEL N FEM PAN MT
Series：CBRS
Mfr：TE Connectivity
Package：Bulk

SKU:acb853f1bcdc Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CFS60383P-30NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT PANEL N FEM PAN MT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CFS60383P-30NF

Description：RF ANT PANEL N FEM PAN MT
Series：CBRS
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：-
Frequency Group：Wide Band
Frequency (Center/Band)：-
Frequency Range：-
Antenna Type：Panel
Number of Bands：5
VSWR：1.8
Return Loss：-
Gain：6.8dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.299" (7.60mm)
Applications：-
Power - Max：50 W

Antennas RF datasheet and documents for CFS60383P-30NF

CFS60383P-30NF

Antennas RF Overview

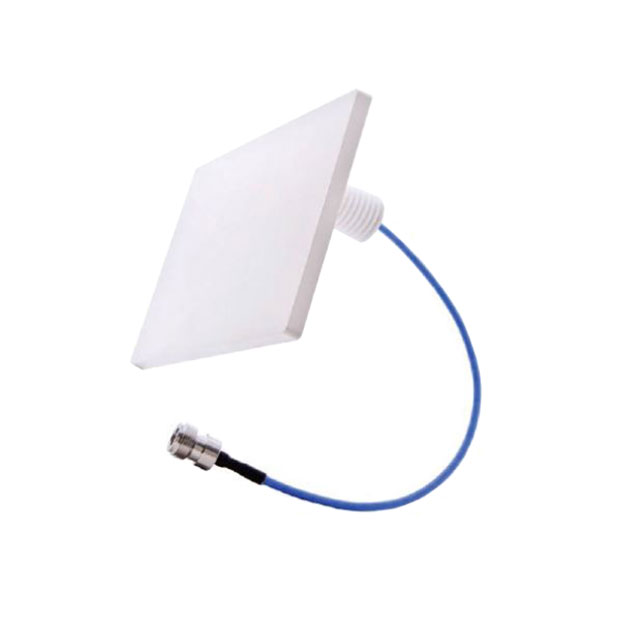

The TE Connectivity CFS60383P-30NF is a passive indoor omnidirectional antenna designed for multi-band wireless communication systems. It operates within a frequency range of 600 MHz to 3.8 GHz, supporting protocols including LTE, WiMAX, and Bluetooth. The unit features a 3 dBi gain with linear polarization and a 50 Ohm impedance. It utilizes a Type N female connector and includes a 30 cm cable length. Rated for 50 W power handling, it functions between -30°C and +70°C. The low-profile ceiling mount design ensures discreet installation in indoor environments.

Antennas RF Feature Summary

Supports multiple wireless protocols including LTE, WiMAX, and Bluetooth across a broad frequency spectrum
Low-profile ceiling mount form factor suitable for unobtrusive indoor deployment
Omnidirectional radiation pattern provides consistent coverage in horizontal planes

Antennas RF Applications

LTE network infrastructure
WiMAX broadband systems
Bluetooth Low Energy (BLE) deployments

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against system specifications before ordering. Confirm that the operating temperature range aligns with the intended installation environment. Ensure compatibility with existing RF cabling and mounting hardware. Cross-reference the part number suffix to confirm exact configuration details provided by the manufacturer.

Antennas RF Selection Notes

Select this model for applications requiring broad band coverage from 600 MHz to 3.8 GHz in indoor settings. Consider the 3 dBi gain and omnidirectional pattern for general area coverage rather than directional focus. Evaluate the ceiling mount style against available installation surfaces. Verify that the Type N connector matches the connected transmission line interface.

Antennas RF Part Context

This component belongs to the CFS series of low-profile antennas manufactured by TE Connectivity. These units are engineered for indoor wireless communication solutions where space constraints and aesthetic integration are priorities. The series typically offers various connector options and cable lengths to suit different system architectures while maintaining standardized electrical performance characteristics.
