CFSA35606P-30D43F

$69.97

Description：ULTRA-LOW PROFILE/ LOW PIM ANT
Series：-
Mfr：TE Connectivity
Package：Bulk

SKU:334a6f2f2038 Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CFSA35606P-30D43F is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is ULTRA-LOW PROFILE/ LOW PIM ANT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CFSA35606P-30D43F

Description：ULTRA-LOW PROFILE/ LOW PIM ANT
Series：-
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：Cellular, Navigation, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：-
Frequency Range：-
Antenna Type：Module
Number of Bands：13
VSWR：2.5, 2
Return Loss：-
Gain：-
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.299" (7.60mm)
Applications：-
Power - Max：50 W

Antennas RF datasheet and documents for CFSA35606P-30D43F

CFSA35606P-30D43F

Antennas RF Overview

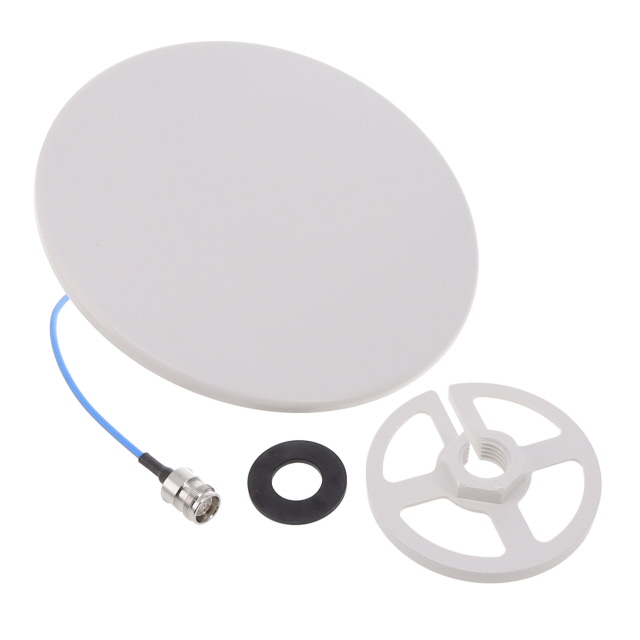

The CFSA35606P-30D43F is a low PIM, indoor wideband omnidirectional antenna from the TE Connectivity CFSA series. It operates across frequency bands of 350–960 MHz, 1350–1550 MHz, and 1690–6000 MHz. The unit features a 4.3-10 female connector with a 0.3m cable length. Designed for ceiling tile mounting, it has a maximum height of 7.60mm (0.299 inches). The component supports cellular voice and data coverage in environments requiring aesthetic integration.

Antennas RF Feature Summary

Low PIM design optimized for high-density wireless networks
Wideband omnidirectional radiation pattern for comprehensive coverage
Discreet physical profile suitable for aesthetic-sensitive indoor installations

Antennas RF Applications

Building ceiling tile mounting
Indoor cellular voice and data coverage
High-density wireless network deployment

Antennas RF Procurement Notes

Verify that the specific model suffix matches the required frequency bands and connector type. Confirm the cable length and mounting hardware compatibility with existing infrastructure. Ensure the low PIM specification aligns with network requirements to prevent signal interference. Check RoHS compliance status if environmental regulations apply to the installation site.

Antennas RF Selection Notes

Select this component when a discreet, low-profile antenna is required for indoor ceiling installations. It is suitable for applications demanding wideband coverage across multiple cellular frequencies. Consider the 4.3-10 connector interface for compatibility with standard base station equipment. Evaluate the low PIM characteristics for dense urban or enterprise environments where signal integrity is critical.

Antennas RF Part Context

This part belongs to the CFSA series of antennas designed for indoor distributed antenna systems. The series offers both low PIM and non-PIM models to support various cellular coverage needs. These antennas are engineered for environments where aesthetic appearance and wideband performance are equally important for successful deployment.
