CGGBP.25.4.A.02

Antennas RF Overview

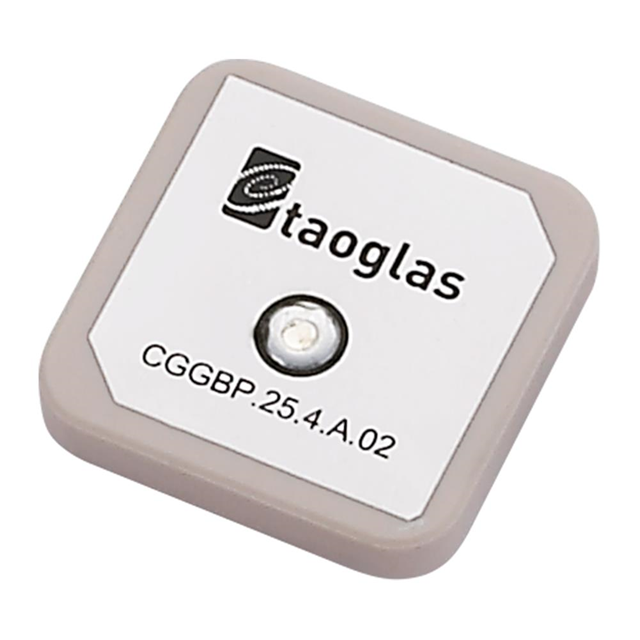

The CGGBP.25.4.A.02 is an embedded ceramic patch antenna designed for multi-constellation GNSS applications, supporting GPS, GLONASS, Galileo, and BeiDou systems. It features a compact 25x25x4mm form factor with a single pin RF feed. The device operates across the L1 band at 1.575 GHz and the L2 band at 1.602 GHz. It provides a gain of 3.3 dBi and utilizes surface mount solder termination. The antenna is RoHS compliant and classified under navigation RF series.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, and BeiDou
• Embedded ceramic construction ensures stable radiation pattern and axial ratio performance
• Single pin design facilitates straightforward integration into host circuitry

Antennas RF Applications

• Multi-constellation GNSS receiver modules
• Embedded location tracking devices
• Navigation systems requiring high signal reception accuracy

Antennas RF Procurement Notes

Verify component authenticity through authorized Taoglas distributors or verified supply chain channels. Confirm that the received hardware matches the specific model designation and packaging standards. Ensure compliance with relevant environmental regulations such as RoHS requirements during procurement processes.

Antennas RF Selection Notes

Select this component when a low-profile embedded solution is required for multi-band GNSS reception. The 25mm square footprint suits space-constrained designs. Verify ground plane dimensions against manufacturer recommendations to maintain optimal electrical performance and signal integrity.

Antennas RF Part Context

This part belongs to the CGGBP family of embedded patch antennas from Taoglas Limited. These components are engineered for reliable operation in navigation applications. The series offers various sizes to accommodate different mechanical constraints while maintaining consistent electrical characteristics across the product line.

Antennas RF Replacement Considerations

Consult official documentation for direct substitutes. Alternative options may include other models within the CGGBP series or compatible ceramic patch antennas from the same manufacturer that meet identical frequency and mounting specifications.
