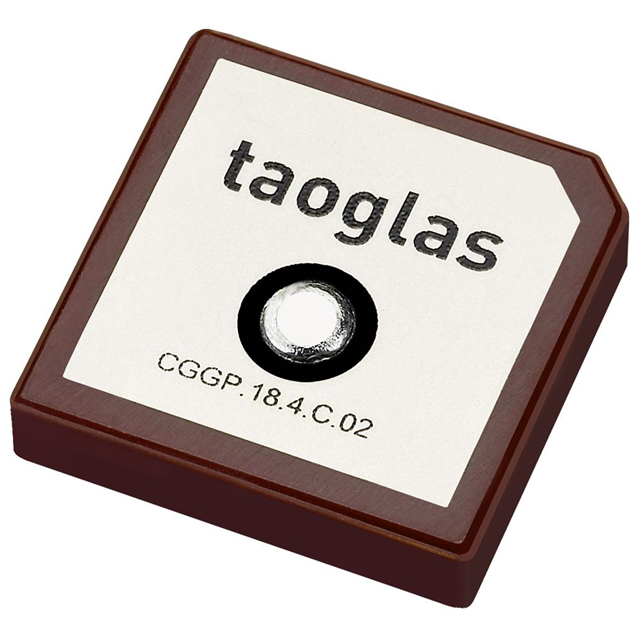

CGGP.18.4.C.02

$4.73

Description：RF ANT 1.575/1.602GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray

SKU:315dac0a2f47 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CGGP.18.4.C.02 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 1.575/1.602GHZ CER PATCH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CGGP.18.4.C.02

Description：RF ANT 1.575/1.602GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.602GHz
Frequency Range：1.574GHz ~ 1.576GHz
Antenna Type：Ceramic Patch
Number of Bands：2
VSWR：2.4
Return Loss：-7.6dB
Gain：3dBi
Features：-
Termination：Pin
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.177" (4.50mm)
Applications：GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for CGGP.18.4.C.02

CGGP.18.4.C.02

Antennas RF Overview

The CGGP.18.4.C.02 is a dual-band ceramic patch antenna manufactured by Taoglas Limited, designed for GNSS applications including GPS, GLONASS, and Galileo. It operates within the L1 band (1.574 GHz to 1.576 GHz) and supports a second frequency range up to 1.607 GHz. The component features an 18mm x 18mm footprint with a maximum height of 4.00mm. It utilizes adhesive mounting and is tuned for a 70mm x 70mm ground plane. The antenna meets automotive quality standards under TS16949 certification.

Antennas RF Feature Summary

Dual-band reception capability supporting multiple global navigation satellite systems
Automotive-grade construction compliant with TS16949 first-tier standards
Compact ceramic patch design optimized for constrained installation spaces

Antennas RF Applications

UAV navigation systems
Automotive telematics units
GNSS tracking devices

Antennas RF Procurement Notes

Verify the specific ordering suffix against the official Taoglas datasheet to ensure correct configuration. Confirm that the required ground plane dimensions match the 70mm x 70mm specification for optimal performance. Check current product lifecycle status as availability may vary.

Antennas RF Selection Notes

Select this model when multi-constellation support is required in a low-profile form factor. Ensure the application environment accommodates adhesive mounting rather than through-hole or surface mount soldering. Validate compatibility with the intended host circuitry impedance.

Antennas RF Part Context

This component belongs to the CGGP series of ceramic patch antennas from Taoglas. It is distinct from similar models like SGGP.18.4.A.02 by its specific tuning and mounting method. The series focuses on robust GNSS reception for industrial and automotive sectors.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Taoglas technical support for direct equivalents if this specific variant is unavailable.
