CGGP.25.4.E.02

$6.01

Description：RF ANT 1.575/1.602GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray

SKU:072fd461355b Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CGGP.25.4.E.02 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 1.575/1.602GHZ CER PATCH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CGGP.25.4.E.02

Description：RF ANT 1.575/1.602GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Ceramic Patch
Number of Bands：2
VSWR：1.8
Return Loss：-
Gain：5.46dBi
Features：-
Termination：Pin
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.157" (4.00mm)
Applications：GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for CGGP.25.4.E.02

CGGP.25.4.E.02

Antennas RF Overview

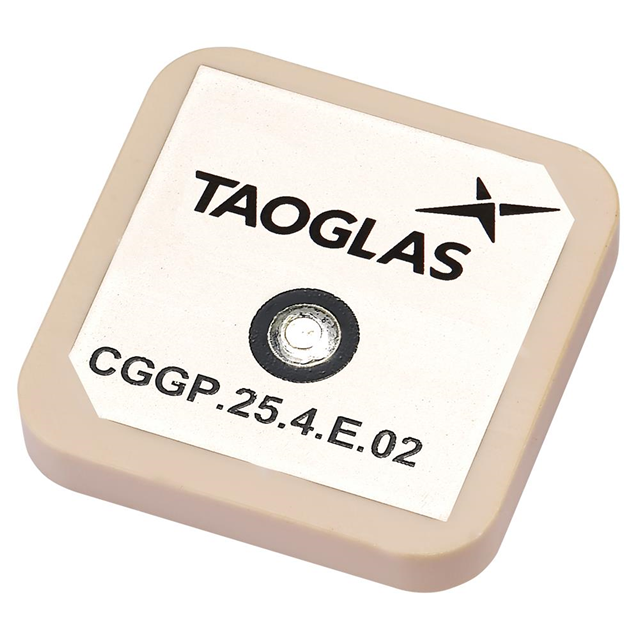

The CGGP.25.4.E.02 is a multi-GNSS ceramic patch antenna designed for embedded applications, supporting GPS, GLONASS, and Galileo navigation systems. It features a double resonance design operating at the L1 band (1575.42 MHz) and the GLONASS L1 band (1602 MHz). The component delivers a peak gain of 5.46 dBi with a maximum height of 4.00 mm. It utilizes linear polarization and is constructed for surface mounting via adhesive.

Antennas RF Feature Summary

Supports dual-band reception for GPS, GLONASS, and Galileo satellite navigation constellations
Incorporates a double resonance design to optimize signal capture across distinct frequency bands
Provides high sensitivity through a peak gain of 5.46 dBi for improved positioning accuracy

Antennas RF Applications

Embedded Global Navigation Satellite System receivers
Multi-constellation tracking devices requiring compact form factors
Navigation modules integrating GPS, GLONASS, and Galileo signals

Antennas RF Procurement Notes

Verify current manufacturing status as this part may be obsolete or subject to change. Confirm physical dimensions and mounting requirements against specific PCB layout constraints. Ensure compatibility with adhesive application methods rather than soldering. Cross-reference official Taoglas documentation for any recent product change notices affecting performance or availability.

Antennas RF Selection Notes

Select this antenna when multi-constellation support including Galileo and GLONASS is required alongside standard GPS functionality. The embedded ceramic construction suits space-constrained designs needing low profile integration. Verify that the operating environment supports adhesive mounting and that the linear polarization aligns with system requirements.

Antennas RF Part Context

This component belongs to the CGGP series of embedded ceramic patch antennas from Taoglas Limited. It is engineered for applications demanding robust multi-GNSS capability within a small footprint. The design focuses on delivering high gain and wide bandwidth coverage for reliable satellite signal acquisition in portable and embedded electronic devices.
