CGIP.25.4.A.02

Antennas RF Overview

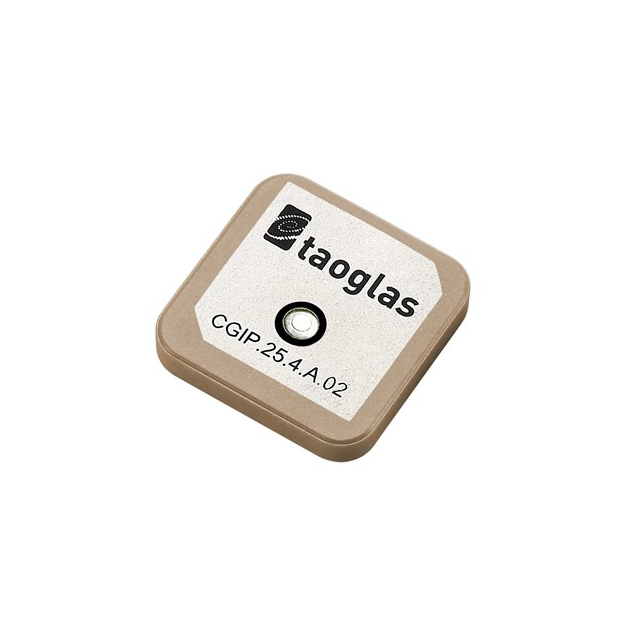

The CGIP.25.4.A.02 is a ceramic patch RF antenna designed for combined GNSS and Iridium satellite communication applications. It operates across two primary frequency ranges: 1.575GHz to 1.626GHz for GPS and 1.575GHz to 1.621GHz for Iridium. The component provides a gain of 5dBi with a VSWR of 1.5. It features pin termination and adhesive installation, measuring 4.00mm in height.

Antennas RF Feature Summary

• Supports combined GPS and Iridium satellite communication bands
• Compact low-profile ceramic patch construction
• Right-hand circular polarization

Antennas RF Applications

• GPS navigation systems
• Iridium satellite communication terminals
• Combined GNSS and satellite data link devices

Antennas RF Procurement Notes

Verify the specific datasheet version as product status may change. Confirm that the adhesive mounting method aligns with the target assembly process. Ensure the operating temperature range meets system requirements. Check RoHS compliance documentation for regulatory adherence. Validate pin configuration against the schematic design.

Antennas RF Selection Notes

Select this model when dual-band operation for both GPS and Iridium is required in a single compact form factor. The 4mm height suits space-constrained enclosures. Pin termination facilitates surface mount integration. Consider the 5dBi gain for standard range applications.

Antennas RF Part Context

This part belongs to the Taoglas CGIP.25 series of combined GNSS and Iridium antennas. It utilizes ceramic patch technology to achieve wide operation bandwidths within a small footprint. The series is engineered for robust performance in mobile satellite communication environments.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for current alternatives if this component is obsolete or unavailable.
