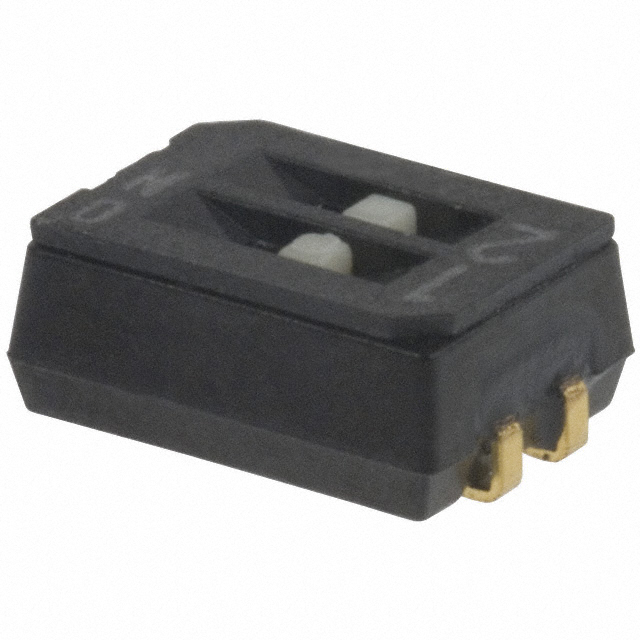

CHS-02TA

CHS-02TA is listed in the Dip Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH SLIDE DIP SPST 0.1A 6V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for CHS-02TA

• Description：SWITCH SLIDE DIP SPST 0.1A 6V
• Series：CHS
• Mfr：Nidec Components Corporation
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST
• Number of Positions：2
• Current Rating (Amps)：100mA
• Voltage Rating：6VDC
• Actuator Type：Slide (Standard)
• Actuator Level：Flush, Recessed
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Height Above Board：0.098" (2.50mm)
• Mounting Type：Surface Mount
• Termination Style：J Lead
• Pitch：0.050" (1.27mm), Half
• Washable：Yes
• Features：Tape Seal
• Operating Temperature：-40°C ~ 85°C

Dip Switches datasheet and documents for CHS-02TA
