CMD69273P-30NF

Antennas RF Overview

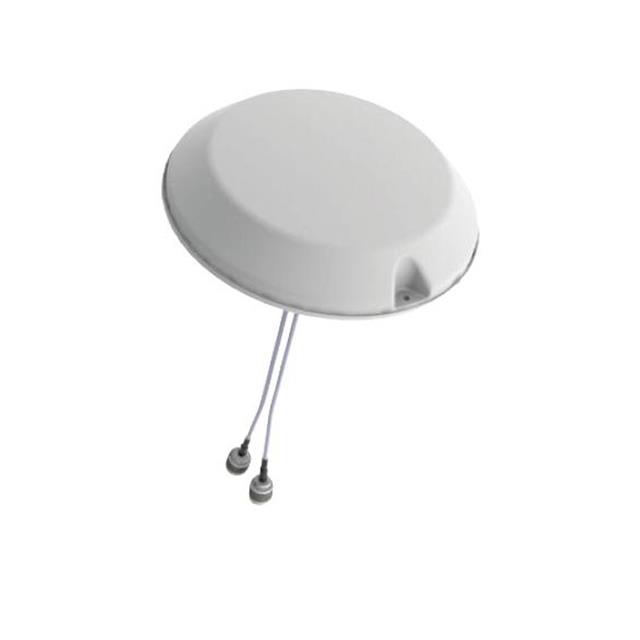

The CMD69273P-30NF is a multi-band MIMO antenna module by TE Connectivity, designed for indoor cellular and wireless applications. It operates across frequency ranges including 700 MHz to 2.7 GHz, supporting LTE, WiMax, and WLAN protocols. The unit features a ceiling mount configuration with an N-type connector and a 300 mm cable length. Technical specifications include a peak gain of approximately 6.9 dBi, linear vertical polarization, and a VSWR of 1.5:1. Impedance is standardized at 50 ohms, ensuring compatibility with standard RF infrastructure.

Antennas RF Feature Summary

• Supports multiple communication protocols including LTE, WiMax, and WLAN
• Designed as a low PIM omnidirectional antenna for indoor environments
• Features a compact ceiling mount form factor with integrated cabling

Antennas RF Applications

• Indoor Distributed Antenna Systems (DAS)
• Cellular network coverage enhancement
• WiMax broadband connectivity installations

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm cable length and connector type, as variations exist within the product family. Ensure the selected variant matches the required mounting hardware and interface standards for the target installation environment. Cross-reference the datasheet for precise electrical performance metrics relevant to the specific frequency bands in use.

Antennas RF Selection Notes

Select this model for indoor deployments requiring multi-band support for both cellular and WiMax services. The ceiling mount design suits spaces where wall mounting is impractical. Consider the 300 mm cable length for proximity to access points or base stations. Verify that the N-type connector aligns with existing RF distribution infrastructure.

Antennas RF Part Context

This component belongs to the CMD series of passive antennas from TE Connectivity Laird. It is engineered for high-performance indoor wireless coverage. The series includes variants with different cable lengths and connector options to accommodate diverse installation requirements while maintaining consistent electrical characteristics.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources for cross-reference data if alternative sourcing is required.
