CMD69423P-B30D43F

Antennas RF Overview

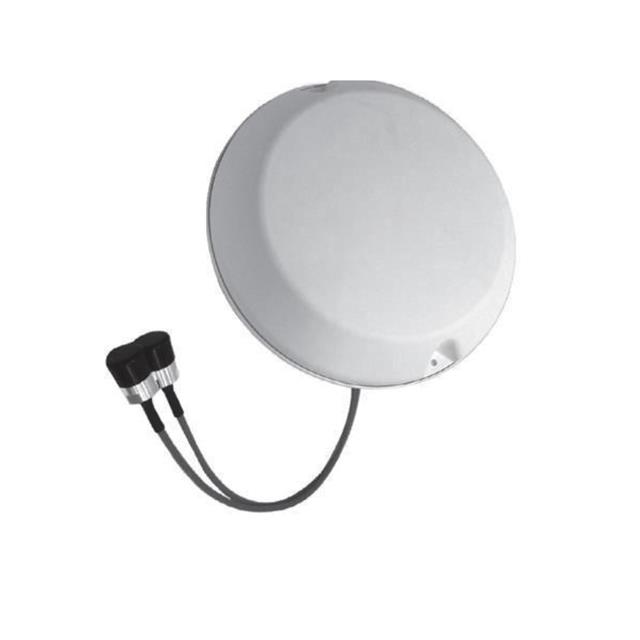

The CMD69423P-B30D43F is a multi-band RF antenna manufactured by TE Connectivity, designed for external mounting applications. It operates within frequency ranges of 698-960 MHz and 1300-4200 MHz, supporting technologies such as CBRS, Cat-M, NB-IoT, and DAS. The unit features dual female 4.3-10 connectors and includes a 300mm cable. With a maximum power rating of 50 W and a low-profile height of 43.50 mm (1.713 inches), it provides omnidirectional coverage suitable for small cell and macrocell deployments.

Antennas RF Feature Summary

• Supports multiple wireless protocols including CBRS, Cat-M, NB-IoT, and DAS
• Features a low-profile dome design for discreet external installation
• Equipped with dual female 4.3-10 connectors for flexible connectivity
• Provides omnidirectional radiation pattern for consistent signal coverage

Antennas RF Applications

• Small Cell networks
• Macrocell infrastructure
• Distributed Antenna Systems (DAS)
• CBRS deployments

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against system specifications before ordering. Confirm that the operating frequency bands align with local regulatory standards and network equipment compatibility. Ensure mounting hardware supports the specified weight and wind load ratings for outdoor environments.

Antennas RF Selection Notes

Select this model for applications requiring broad frequency coverage across sub-1 GHz and mid-band spectrum. The dual-port configuration supports MIMO operations, enhancing data throughput in dense network environments. Consider the low-profile form factor when aesthetic integration or limited clearance is a priority for wall or ceiling installations.

Antennas RF Part Context

This component belongs to the CMD series of antennas from TE Connectivity, which are engineered for robust performance in cellular and IoT infrastructure. The series emphasizes durability and wideband capabilities, catering to modern telecommunications needs including 5G readiness and private LTE networks.

Antennas RF Replacement Considerations

Consult official TE Connectivity documentation for direct cross-reference part numbers. Verify mechanical dimensions and connector interfaces to ensure compatibility with existing mounting brackets and cabling systems.
