CMQ23496-75RSMM

Antennas RF Overview

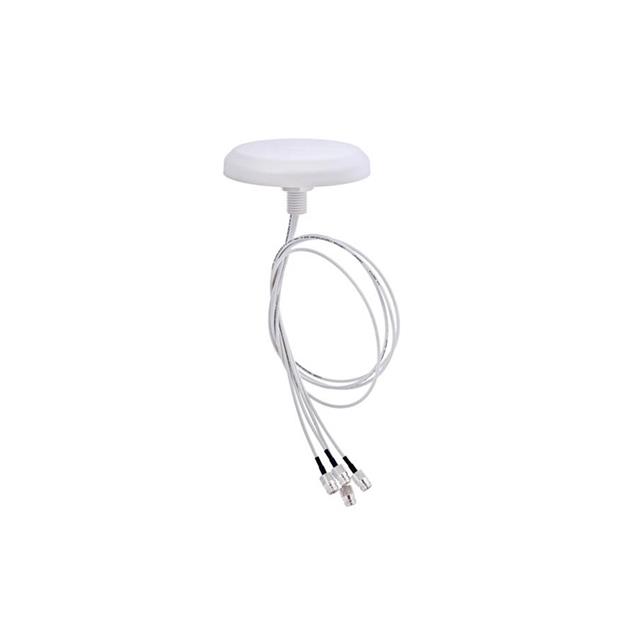

The CMQ23496-75RSMM is a TE Connectivity Laird omnidirectional RF antenna designed for external wall or ceiling mounting. It operates within the UHF frequency range of 2.3GHz to 2.7GHz and 4.9GHz to 5.95GHz, supporting protocols including Wi-Fi, Bluetooth, Zigbee, WLAN, and DAS. The unit features a male panel mount termination with a maximum power rating of 10W. Technical specifications include a gain of 6.3dBi and a maximum height of 32.00mm (1.260 inches).

Antennas RF Feature Summary

• Supports multiple wireless communication protocols including Wi-Fi, Bluetooth, Zigbee, WLAN, and Distributed Antenna Systems.
• Designed for external installation using wall or ceiling mounting methods.
• Provides omnidirectional radiation characteristics for broad coverage areas.

Antennas RF Applications

• Wi-Fi network infrastructure deployment
• Bluetooth device connectivity systems
• Zigbee mesh network implementation
• Distributed Antenna System (DAS) installations

Antennas RF Procurement Notes

Verify the specific datasheet version and technical documentation provided by TE Connectivity or authorized distributors to ensure compliance with project requirements. Confirm that the male panel mount interface and physical dimensions align with the intended enclosure or mounting structure. Cross-reference the frequency range specifications against the target application's regulatory and operational standards to guarantee compatibility.

Antennas RF Selection Notes

Select this component when an external omnidirectional solution is required for multi-protocol wireless environments. Ensure the mounting location supports the specified weight and dimensions. Verify that the operating environment falls within the acceptable temperature range and that the 10W power handling capacity meets the system's transmission requirements without exceeding safety limits.

Antennas RF Part Context

This model belongs to the TE Connectivity Laird RF antenna series, which specializes in wireless connectivity solutions. The product line focuses on providing reliable signal transmission for various industrial and commercial applications. The CMQ23496-75RSMM represents a specific configuration optimized for dual-band operation across UHF frequencies, catering to modern wireless networking demands.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity official resources for direct equivalents or updated models within the same product family.

Antennas RF FAQ

What is the maximum power rating for this antenna?

The maximum power rating is 10W.

Which mounting methods are supported?

The antenna supports external wall or ceiling mounting via a male panel mount interface.
