CMQ23496-91RTNM

Antennas RF Overview

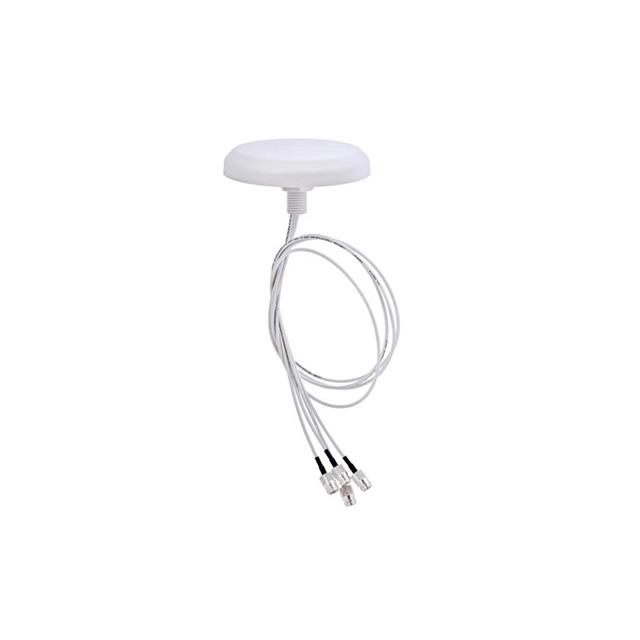

The TE Connectivity CMQ23496-91RTNM is a dual-band dome RF antenna designed for WLAN applications. It operates within the 2.3GHz to 2.7GHz and 4.9GHz to 5.95GHz frequency ranges, covering 2.5GHz and 5.4GHz bands. The unit features four N-type female connectors with 91mm cables. It provides a gain of 6.3dBi and supports a maximum power of 10W. The antenna has a VSWR of 1.8 and utilizes panel mounting. Its physical height is 32.00mm.

Antennas RF Feature Summary

• Dual-band operation supporting 2.4GHz and 5GHz WLAN standards
• Four integrated N-type female connectors for multi-port connectivity
• Dome design optimized for wireless local area network environments

Antennas RF Applications

• Wireless Local Area Network (WLAN) systems
• WiFi infrastructure deployment
• Bluetooth and Zigbee integration

Antennas RF Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to end-of-life status. Confirm specific suffix requirements against current engineering specifications. Request official product change notifications to ensure compliance with updated manufacturing standards. Validate connector types and cable lengths match system interface needs before finalizing orders.

Antennas RF Selection Notes

Select this model for applications requiring simultaneous dual-band coverage in compact dome form factors. Ensure mechanical clearance accommodates the 32mm height and panel mount configuration. Verify that the four N-type ports align with existing cabling infrastructure. Consider environmental ratings if deployed in non-standard conditions.

Antennas RF Part Context

This component belongs to the CMQ series of RF antennas manufactured by TE Connectivity. It is engineered specifically for high-performance wireless communication setups. The part integrates multiple frequency bands into a single housing to simplify installation. It represents a specialized solution for dense wireless network deployments.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. The manufacturer has issued a product termination notification for this item. Engineers must evaluate alternative models from the same series or consult technical support for direct equivalents.
