CSHB0530R-R22M

Fixed Inductors Overview

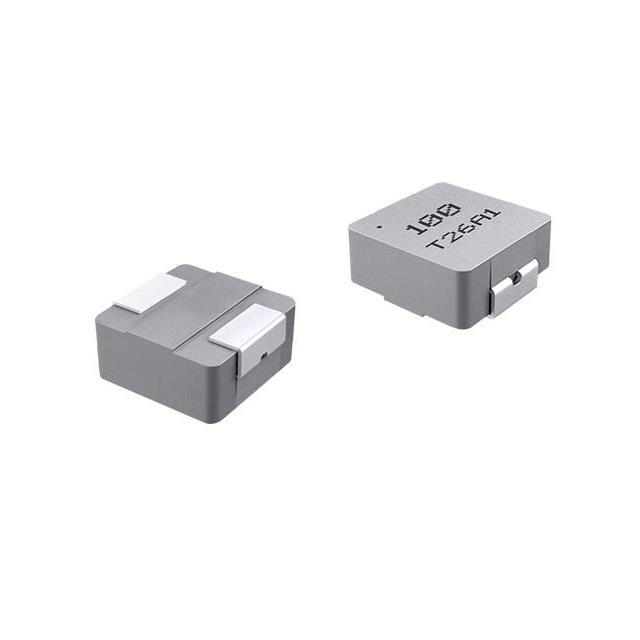

The CODACA CSHB0530R-R22M is a fixed surface-mount inductor with a nominal inductance of 220 nH and a tolerance of ±20%. It features a shielded molded construction using alloy powder core material, designed to minimize electromagnetic interference. The component has a maximum DC resistance of 3.5 mΩ and supports a rated current of 19 A. Operating within a temperature range of -55°C to 170°C, it utilizes a 2-SMD package measuring 5.80mm x 5.20mm x 2.8mm.

Fixed Inductors Feature Summary

• Shielded molded structure for excellent EMI resistance
• Alloy powder composite core for ultra-low buzz noise
• High saturation current capability for power applications

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input/output chokes
• EMI suppression in compact electronic modules

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact electrical tolerances and packaging configuration. Ensure the procurement documentation explicitly references the CSHB0530R series specifications to avoid substitution errors with similar high-current variants. Confirm RoHS compliance status matches project requirements before finalizing orders.

Fixed Inductors Selection Notes

Select this component when low inductance values near 220 nH are required alongside high current handling up to 19 A. The 2-SMD footprint suits space-constrained designs. Verify that the 3.5 mΩ DCR meets efficiency targets. Consider the 170°C operating limit for high-thermal environments compared to standard industrial grades.

Fixed Inductors Part Context

This part belongs to the CSHB0530R series of shielded molded inductors from CODACA. The series offers various inductance options ranging from nanohenries to microhenries, all sharing the same compact 0530 package dimensions. This specific model provides a balance of minimal inductance and high current capacity within the family.

Fixed Inductors Replacement Considerations

Direct substitutes include other manufacturers' 220 nH, 19 A, 2-SMD shielded inductors with comparable DCR and thermal ratings. Cross-reference package dimensions (5.8x5.2x2.8mm) and pinout compatibility. Verify that alternative parts meet the same ±20% tolerance and 170°C temperature rating.

Fixed Inductors FAQ

What is the magnetic shielding type?

It uses a shielded molded structure with an alloy powder core to provide excellent resistance to electromagnetic interference.

What is the maximum DC resistance?

The maximum DC resistance is 3.5 mΩ.
