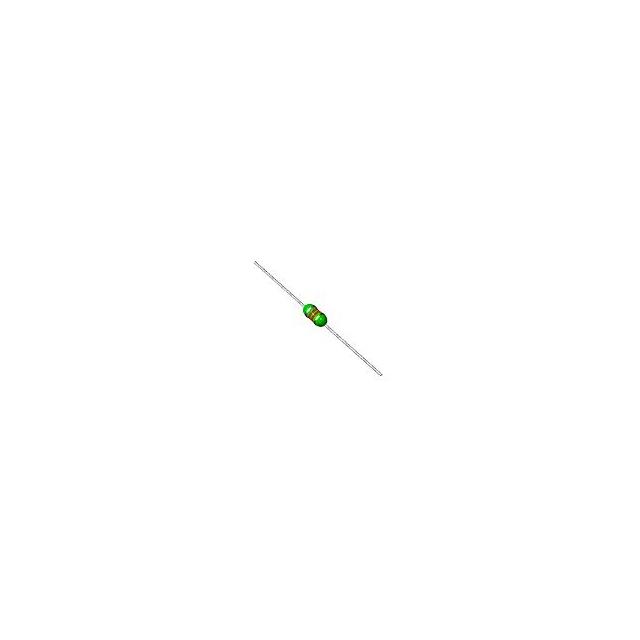

CTC1F-R82K

$1.11

Description：AXL LEADED CONF COATED INDUCTOR
Series：ctc1f
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:079bb6e6cdf7 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTC1F-R82K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is AXL LEADED CONF COATED INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTC1F-R82K

Description：AXL LEADED CONF COATED INDUCTOR
Series：ctc1f
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：-
Material - Core：-
Inductance：820 nH
Tolerance：±10%
Current Rating (Amps)：-
Current - Saturation (Isat)：-
Shielding：-
DC Resistance (DCR)：850mOhm
Q @ Freq：-
Frequency - Self Resonant：250MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：-
Mounting Type：Through Hole
Package / Case：-
Supplier Device Package：-
Size / Dimension：-
Height - Seated (Max)：-
Features：-

Fixed Inductors datasheet and documents for CTC1F-R82K

CTC1F-R82K

Fixed Inductors Overview

The CTC1F-R82K is a general purpose inductor manufactured by Central Technologies, featuring an 82 µH nominal inductance with a ±10% tolerance. It utilizes a phenolic core and is housed in a tubular axial-leaded package. The component exhibits a maximum DC resistance of 0.4 Ω and supports a maximum rated current of 0.5 A. It operates within a temperature range of -55 °C to 125 °C, offering a minimum quality factor of 30 at the nominal inductance and a self-resonant frequency of 160 MHz.

Fixed Inductors Feature Summary

Utilizes a phenolic core material for general purpose applications
Features an axial leaded tubular package for through-hole mounting
Designed for RF inductor functions with high self-resonant frequency

Fixed Inductors Applications

RF Inductor circuits
General Purpose Inductor applications

Fixed Inductors Procurement Notes

Verify that the specific part number CTC1F-R82K matches the required 82 µH inductance and ±10% tolerance. Confirm the axial leaded package style is compatible with the target PCB layout. Ensure the operating temperature range of -55 °C to 125 °C meets the environmental requirements of the final assembly.

Fixed Inductors Selection Notes

Select this component when a general purpose inductor with a phenolic core is required for axial mounting. Consider the 0.5 A current rating and 0.4 Ω DC resistance for circuit design constraints. This part is suitable for designs needing a self-resonant frequency of 160 MHz and operation up to 125 °C.

Fixed Inductors Part Context

This component belongs to the CTC1F series from Central Technologies, which offers inductances ranging from 0.10 µH to 1,000 µH. The series provides various tolerance options and is designed for general purpose and RF applications using phenolic cores.

Fixed Inductors Replacement Considerations

Other parts within the CTC1F series may offer different inductance values but share similar construction. Cross-reference with other axial inductors if form factor changes are acceptable.
