CVL-2400/5500-2J-BLK-36

Antennas RF Overview

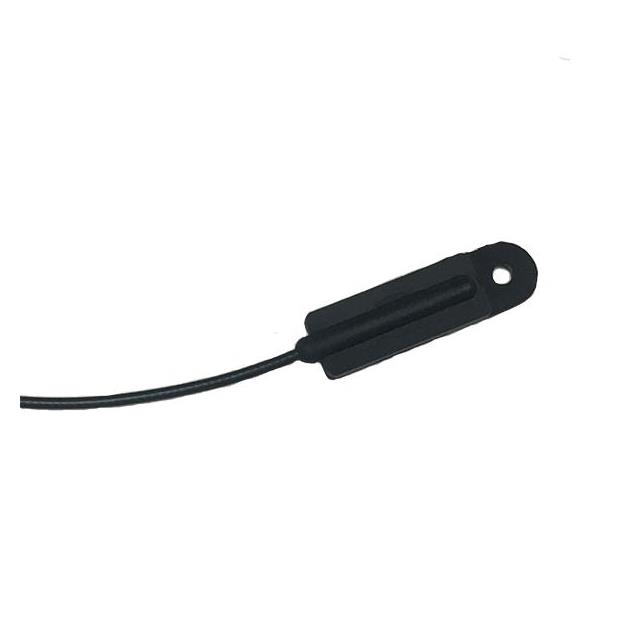

The CVL-2400/5500-2J-BLK-36 is a dual-band Wi-Fi surveillance antenna module designed for covert applications. It operates across the 2.4 GHz and 5.5 GHz frequency bands, covering ranges of 2.4–2.5 GHz and 5–6 GHz respectively. The component features an SMA male chassis mount interface and exhibits a Voltage Standing Wave Ratio (VSWR) of 2. Manufactured by Mobile Mark Antenna Solutions, this unit is part of the CVL series, which specializes in slim, low-profile antennas suitable for discreet integration into infrastructure.

Antennas RF Feature Summary

• Dual-band operation supporting both 2.4 GHz and 5 GHz Wi-Fi frequencies
• Covert and slim form factor designed for discreet installation
• SMA male connector with chassis mounting capability

Antennas RF Applications

• Wi-Fi surveillance systems requiring hidden antenna placement
• Smart city infrastructure deployments
• Public transit communication networks

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration against project requirements before ordering. Confirm that the dual-band frequency coverage aligns with the target network standards. Ensure compatibility with existing RF cabling and chassis interfaces to prevent integration issues during installation.

Antennas RF Selection Notes

Select this model when a low-profile, dual-band solution is required for Wi-Fi environments. It is appropriate for scenarios where visual concealment is necessary due to its slim design. Consider the SMA male interface for direct connection to compatible RF modules without additional adapters.

Antennas RF Part Context

This component belongs to the CVL series from Mobile Mark Antenna Solutions, which focuses on mini multiband covert WiFi antennas. The series includes variants such as the CVL-2400/5500-2C-BLK-36, indicating different connector or cable configurations within the same functional family.

Antennas RF Replacement Considerations

The CVL-2400/5500-2C-BLK-36 is a related variant within the same series. Verify if the connector difference impacts the specific application requirements before substituting.
