CVL-WB2-7C-BLK-36

Antennas RF Overview

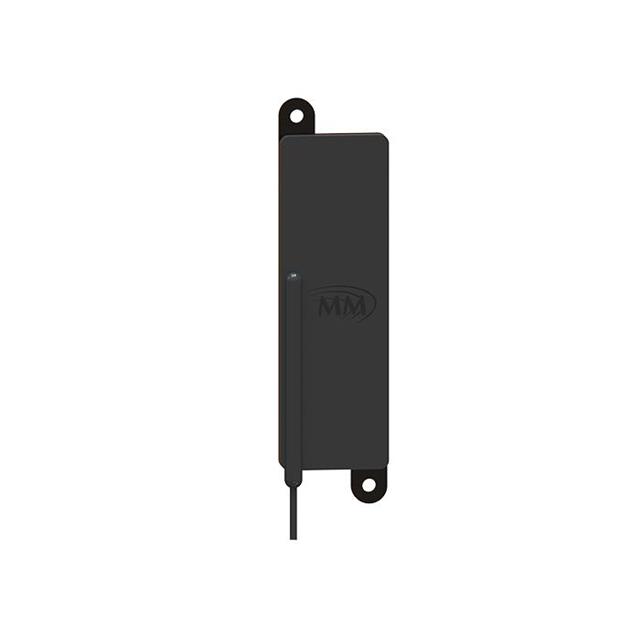

The CVL-WB2-7C-BLK-36 is a covert antenna module from Mobile Mark Antenna Solutions. It operates across two frequency bands: 617MHz to 960MHz and 1.7MHz to 7.2GHz. The device supports 5G, WiFi 6E, LTE, and cellular applications. It features a VSWR of 3 and provides a gain of 2dBi in both bands. The unit utilizes an SMA connector for mounting.

Antennas RF Feature Summary

• Supports dual-band operation covering sub-6 GHz cellular and high-frequency WiFi ranges
• Designed as a covert antenna module for discreet installation environments
• Compatible with 5G, LTE, and WiFi 6E communication standards

Antennas RF Applications

• 5G Sub-6 Cellular networks
• WiFi 6E connectivity
• LTE broadband communications

Antennas RF Procurement Notes

Verify the specific connector type and cable length associated with the BLK-36 suffix against the official datasheet before ordering. Confirm that the SMA interface matches your equipment requirements. Ensure the frequency range covers all necessary operational bands for your deployment scenario.

Antennas RF Selection Notes

Select this model when a low-profile covert solution is required for multi-band cellular and WiFi integration. The 2dBi gain and 3 VSWR are standard for this series. Consider the physical dimensions and mounting constraints relative to other CVL-WB2 variants if space is limited.

Antennas RF Part Context

This component belongs to the CVL-WB2 series of covert antennas by Mobile Mark. The series is engineered for mobile and fixed site applications requiring reliable performance across 4G LTE, 5G Sub-6, and WiFi frequencies. The product line targets fleet management, smart cities, and infrastructure projects.

Antennas RF Replacement Considerations

The CVL-WB2-7C-BLK-96 is a related variant within the same series offering similar frequency coverage but potentially different connector or cable specifications. Verify exact mechanical and electrical compatibility before substituting.
