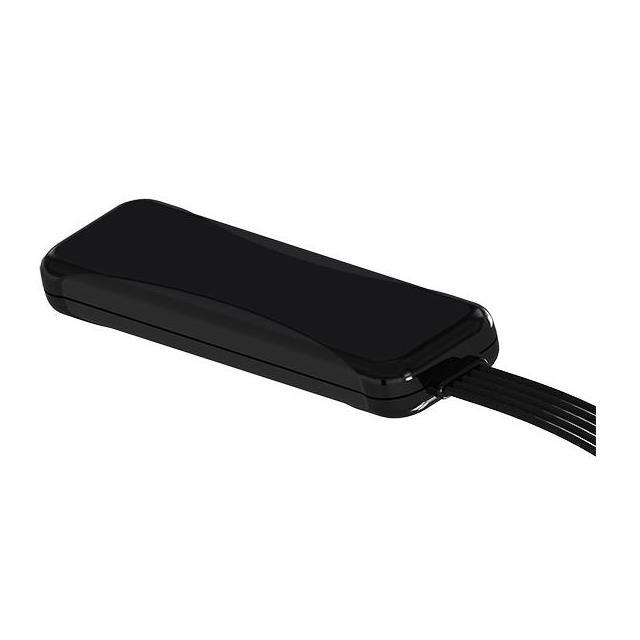

CVWG502-2C2C2J2J2C-BLK-192 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Mobile Mark Antenna Solutions. Its product description is Covert 2xLTE 2xWiFi GNSS 5-Cable. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for CVWG502-2C2C2J2J2C-BLK-192
- Description：Covert 2xLTE 2xWiFi GNSS 5-Cable
- Series：CVW
- Mfr：Mobile Mark Antenna Solutions
- Package：Bulk
- RF Family/Standard：Cellular, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：827MHz, 1.575Hz, 1.612GHz, 2.23GHz, 2.45GHz, 5.45GHz
- Frequency Range：694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 1.71GHz ~ 2.75GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
- Antenna Type：Module
- Number of Bands：6
- VSWR：2
- Return Loss：-
- Gain：3dBi, 5dBi, 4dBi, 5dBi, 5dBi
- Features：Cable - 3m
- Termination：SMA (5)
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.748" (19.00mm)
- Applications：GPS, GLONASS, LTE, Wi-Fi
- Power - Max：10 W
Antennas RF datasheet and documents for CVWG502-2C2C2J2J2C-BLK-192
Antennas RF Overview
The CVWG502-2C2C2J2J2C-BLK-192 is a covert multiband antenna from Mobile Mark Antenna Solutions designed for compact installations. It supports LTE networks ranging from 694 MHz to 2.75 GHz, dual-band WiFi at 2.4 and 5 GHz, and GNSS including GPS and Glonass. The unit features five cables with SMA connectors and utilizes an adhesive mounting method.
Antennas RF Feature Summary
- Supports LTE, dual-band WiFi, and GNSS frequencies
- Covert design suitable for discreet integration
- Includes five separate cables with SMA connectors
- Adhesive mounting for secure installation
Antennas RF Applications
- Fleet management systems
- Smart city infrastructure
- Public transit communication
- Utility network monitoring
Antennas RF Procurement Notes
Verify the specific part number CVWG502-2C2C2J2J2C-BLK-192 against official Mobile Mark documentation to ensure correct configuration. Confirm that the five-cable SMA interface matches your device requirements. Check for any updated datasheets regarding mechanical dimensions and environmental ratings before finalizing procurement.
Antennas RF Selection Notes
Select this model when a single covert solution is required for LTE, WiFi, and GNSS signals. Ensure the application environment accommodates adhesive mounting. Verify that the SMA connector type aligns with existing cabling infrastructure. Consider the physical size constraints of the installation site relative to the antenna's covert profile.
Antennas RF Part Context
This component belongs to the CVW502 series of covert antennas by Mobile Mark Antenna Solutions. The series is engineered to cover cellular bands from 694 MHz to 2.75 GHz alongside WiFi and GNSS. These antennas are positioned as reliable solutions for mobile and fixed-site communications in demanding environments.
Antennas RF Replacement Considerations
The CVWG502-2C2C2J2J2C-BLK-120 is a documented variant within the same series. Verify cable count and connector specifications when substituting. Ensure frequency coverage remains consistent with system requirements.
