CY7C1613KV18-250BZXC

Memory IC Overview

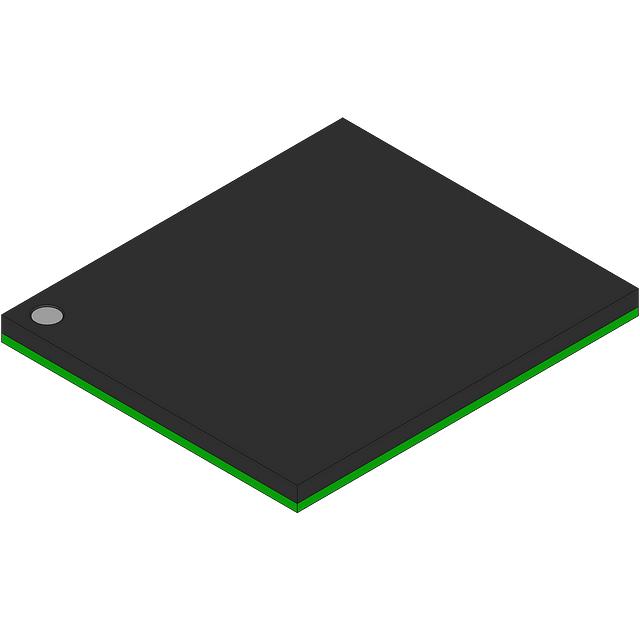

The CY7C1613KV18-250BZXC is a Quad Data Rate (QDR) II SRAM manufactured by Cypress Semiconductor Corp. It features an 8M x 18 memory organization, providing a total capacity of 144Mb. The device operates with a clock frequency of 250 MHz and utilizes a parallel interface. It is housed in a 165-FBGA package measuring 15x17 mm. The supply voltage range is 1.7V to 1.9V, and it supports surface mount installation.

Memory IC Feature Summary

• Synchronous operation on both read and write ports for high-speed data transfer
• Quad Data Rate architecture enabling four data transfers per clock cycle
• Parallel interface supporting high-bandwidth applications

Memory IC Applications

• High-performance networking equipment
• Telecommunications infrastructure
• Data center storage systems

Memory IC Procurement Notes

Verify the specific suffix 'BZXC' against official Cypress documentation to confirm pinout and electrical characteristics match your design requirements. Ensure compatibility with the 1.7V to 1.9V power supply rails. Confirm the 165-FBGA footprint dimensions align with your PCB layout constraints before finalizing procurement.

Memory IC Selection Notes

Select this component when designing systems requiring high-throughput synchronous memory with a 144Mb capacity. It is suitable for applications needing 250 MHz operation speeds. Consider the 165-FBGA package size and 1.8V operating voltage during system integration. Compare against other QDR II variants if different densities or interface widths are required.

Memory IC Part Context

This part belongs to the Cypress QDR II SRAM family, designed for high-speed parallel memory access. It shares architectural similarities with other devices in the CY7C16xx series, offering synchronous read and write capabilities. The technology is optimized for applications demanding low latency and high bandwidth in embedded environments.

Memory IC Replacement Considerations

Check for direct substitutes within the CY7C1613 series with different speed grades or temperature ranges. Verify pin-to-pin compatibility with alternative vendors offering equivalent QDR II SRAMs. Ensure any replacement maintains the 165-FBGA package and 1.8V operating specifications.
