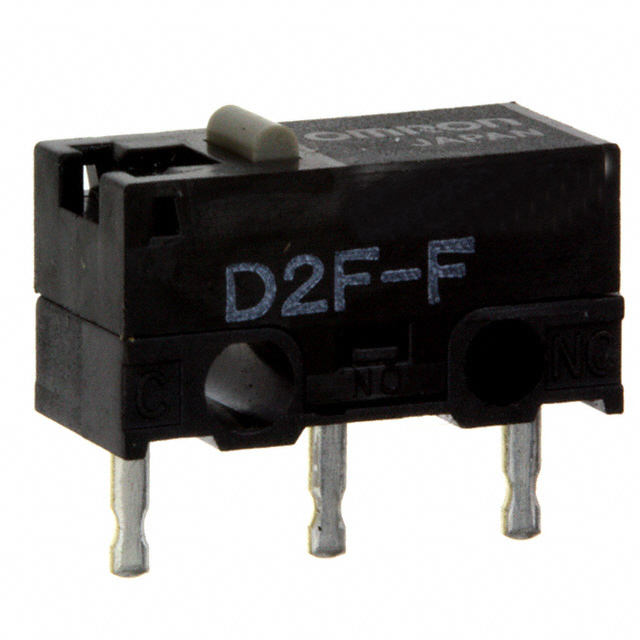

Limit Switches D2F-F product image

D2F-F

$1.90

Description：SWITCH SNAP ACTION SPDT 1A 125V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk

SKU:9bbe5502f251 Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D2F-F is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2F-F

Description：SWITCH SNAP ACTION SPDT 1A 125V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：1A (AC), 500mA (DC)
Voltage Rating - AC：125 V
Actuator Type：Round (Pin Plunger)
Mounting Type：Through Hole
Termination Style：PC Pin
Ingress Protection：IP40
Features：-
Operating Force：75gf
Release Force：5.099gf
Operating Position：0.217" (5.5mm)
Pretravel：0.020" (0.5mm)
Differential Travel：0.005" (0.13mm)
Overtravel：0.010" (0.25mm)
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D2F-F

D2F-F
