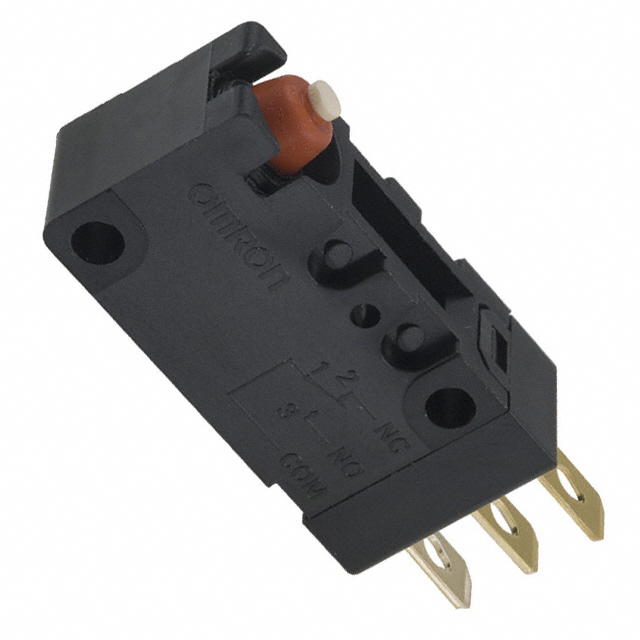

D2VW-01-3HS

D2VW-01-3HS is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNP ACT SPST-NO 0.1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2VW-01-3HS

• Description：SWITCH SNP ACT SPST-NO 0.1A 125V
• Series：D2VW
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：100mA (AC/DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：200gf
• Release Force：30gf
• Operating Position：0.579" (14.7mm)
• Pretravel：0.047" (1.2mm)
• Differential Travel：0.016" (0.4mm)
• Overtravel：0.040" (1.0mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D2VW-01-3HS
