DASUTWCR5004310

Antennas RF Overview

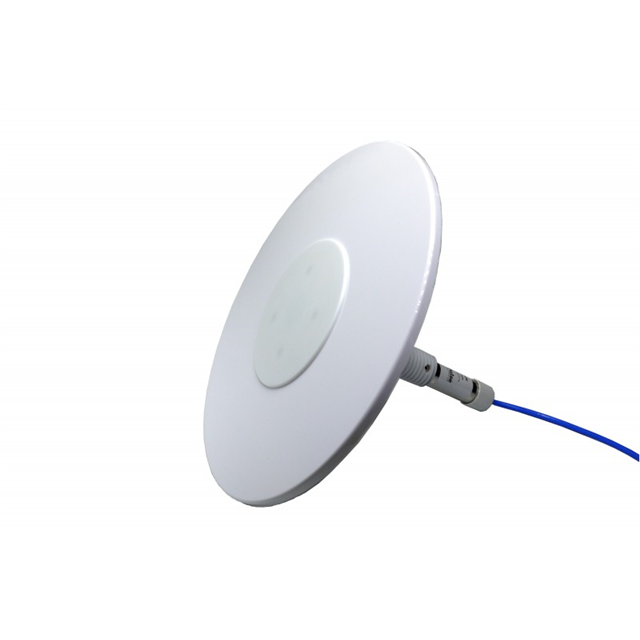

The DASUTWCR5004310 is a flat patch RF antenna from Pulse Electronics, designed for in-building and outdoor distributed antenna systems. It supports LTE, Wi-Fi, and cellular bands with frequency ranges of 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, and 2.3GHz ~ 2.7GHz. The unit features a 4.3/10 female panel mount connector and includes a 500mm cable. Gain specifications are 5dBi and 7dBi across the supported bands, with a maximum power handling of 40 W and a VSWR of 2.

Antennas RF Feature Summary

• Flat patch design suitable for discreet installation in distributed antenna environments
• Integrated 500mm cable with 4.3/10 female connector for direct system integration
• Multi-band capability supporting 2G, 3G, 4G, LTE, and Wi-Fi applications

Antennas RF Applications

• In-building distributed antenna systems (DAS)
• Outdoor distributed antenna systems
• Cellular network coverage enhancement
• Wi-Fi signal distribution

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands and gain specifications for your deployment. Confirm the connector type and cable length meet the physical installation constraints. Ensure compatibility with existing 4.3/10 female interfaces in the DAS infrastructure before procurement.

Antennas RF Selection Notes

Select this model when a low-profile flat patch antenna is required for multi-band cellular and Wi-Fi support. Consider the 40 W power rating and 500mm integrated cable length as key constraints. Evaluate the 5dBi and 7dBi gain options against site-specific coverage requirements to ensure adequate signal distribution.

Antennas RF Part Context

This component belongs to the Clarity series of RF antennas by Pulse Electronics. It is categorized under broadband cellular and WiFi standards. The product is currently active and compliant with RoHS3 regulations. It is intended for use in professional telecommunications infrastructure rather than consumer electronics.

Antennas RF Replacement Considerations

The datasheet references DASUTCC5004310 as an antenna-only variant within the same family. Verify if the integrated cable configuration is strictly necessary or if the standalone antenna version suffices for the application.
