DBA6171C1-BSMAM

Antennas RF Overview

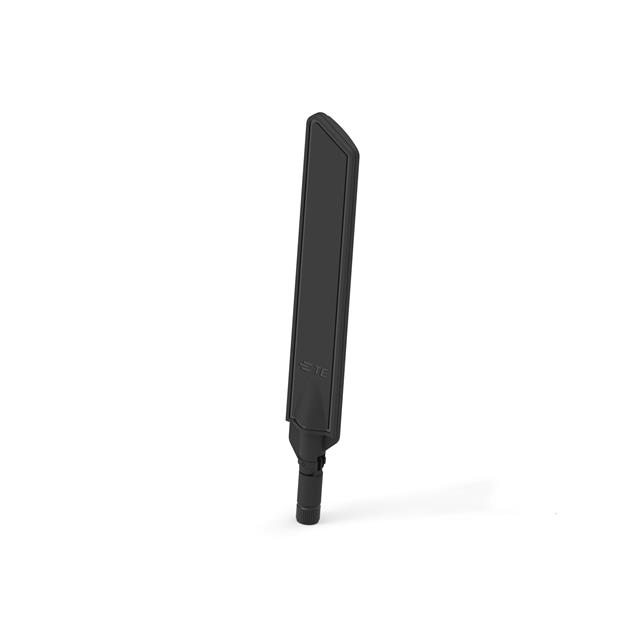

The DBA6171C1-BSMAM is a multi-band RF antenna manufactured by TE Connectivity, designed for cellular communication applications. It operates within the frequency range of 6 to 7.125 GHz, supporting 4G, 5G, LTE, Cat-M, and NB-IoT protocols. The component features a linear polarization with a gain of 4.4 dBi and a characteristic impedance of 50 ohms. It utilizes an SMA male connector for mounting and has a maximum height of 184.00 mm (7.244 inches). The unit is ROHS3 compliant.

Antennas RF Feature Summary

• Supports multiple cellular standards including 5G, LTE, Cat-M, and NB-IoT
• Utilizes an SMA male connector for secure mounting
• Provides linear polarization with 4.4 dBi gain
• Operates within a wide frequency band from 6 to 7.125 GHz

Antennas RF Applications

• 5G cellular network infrastructure
• LTE base station deployments
• Cat-M IoT connectivity solutions
• NB-IoT device integration

Antennas RF Procurement Notes

Verify the specific ordering suffix BSMAM against the manufacturer's current datasheet to ensure compatibility with required connector types and mounting configurations. Confirm that the SMA male interface matches the system design requirements. Check for ROHS3 compliance status if environmental regulations apply to the intended deployment environment.

Antennas RF Selection Notes

Select this model when a multi-band solution covering 6 to 7.125 GHz is required for cellular and IoT applications. Ensure the system architecture supports the 50-ohm impedance and linear polarization characteristics. Consider the physical dimensions, specifically the 184.00 mm height, during mechanical design integration to avoid spatial conflicts in the installation area.

Antennas RF Part Context

This component belongs to the DBA6171 series of blade antennas from TE Connectivity. These antennas are engineered for robust performance in indoor and outdoor cellular environments. The series provides reliable signal transmission for modern mobile networks, ensuring consistent connectivity across various frequency bands used in contemporary telecommunications infrastructure.

Antennas RF Replacement Considerations

Consult TE Connectivity official documentation for direct substitutes within the DBA6171 family. Verify that any alternative part maintains identical frequency ranges, connector types, and gain specifications to ensure seamless integration without redesigning the host system.
