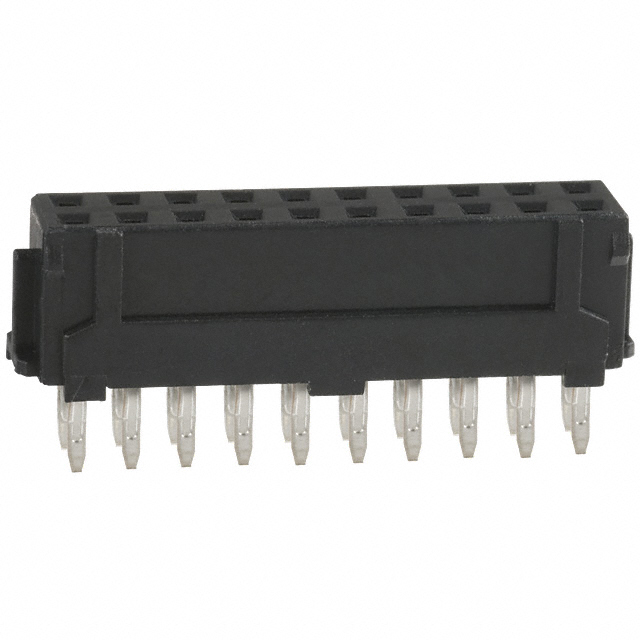

DF11-20DS-2DSA(05)

$1.27

Description：CONN RCPT 20POS 0.079 TIN PCB
Series：DF11
Mfr：Hirose Electric Co Ltd
Package：Tray

SKU:a0f736b5b0bc Category: Headers, Receptacles, Female Sockets Brand: Hirose Electric Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DF11-20DS-2DSA(05) is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN RCPT 20POS 0.079 TIN PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for DF11-20DS-2DSA(05)

Description：CONN RCPT 20POS 0.079 TIN PCB
Series：DF11
Mfr：Hirose Electric Co Ltd
Package：Tray
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：20
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Press-Fit, Solder
Fastening Type：Friction Lock
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：78.7µin (2.00µm)
Insulation Color：Black
Insulation Height：0.244" (6.20mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-30°C ~ 85°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：7.8mm, 8.45mm
Ingress Protection：-
Features：-
Current Rating (Amps)：2A
Voltage Rating：250V

Headers, Receptacles, Female Sockets datasheet and documents for DF11-20DS-2DSA(05)

DF11-20DS-2DSA(05)

Headers, Receptacles, Female Sockets Overview

The DF11-20DS-2DSA(05) is a 20-position, double-row female socket connector from the Hirose DF11 series. Designed for board-to-board or cable applications, it features a 2.00mm (0.079 inch) contact pitch and straight through-hole termination. The unit utilizes brass contacts with tin plating and a black polyamide (PA) insulation body rated UL94 V-0. It supports a maximum current of 2A at 250V, operating within a temperature range of -30°C to 85°C.

Headers, Receptacles, Female Sockets Feature Summary

Double-row configuration condenses 20 contacts within a narrow 5mm width.
Friction lock mechanism secures mating connections without additional hardware.
Ribbed design prevents incorrect insertion during assembly.
Compatible with both crimping and IDC wiring methods.

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnections
Cable-to-cable harnesses
PCB-to-cable connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix code against official datasheets to confirm termination style and packaging. Ensure compatibility with mating header pins regarding stack height and locking mechanisms. Confirm material certifications such as UL94 V-0 flammability ratings and RoHS compliance status prior to procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when space constraints require a high-density 20-pin interface in a compact footprint. Suitable for designs needing robust friction-lock stability and versatile wiring options including crimp or IDC. Verify that the 2A current rating and 250V voltage limits align with system requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the DF11 series, characterized by its 2mm pitch and dual-row layout. It serves as a female receptacle counterpart to male headers like the DF11-20DP-2DSA(01). The series offers various termination options including surface mount and through-hole variants for diverse electronic integration needs.
