DF3-10S-2DSA(50)

Headers, Receptacles, Female Sockets Overview

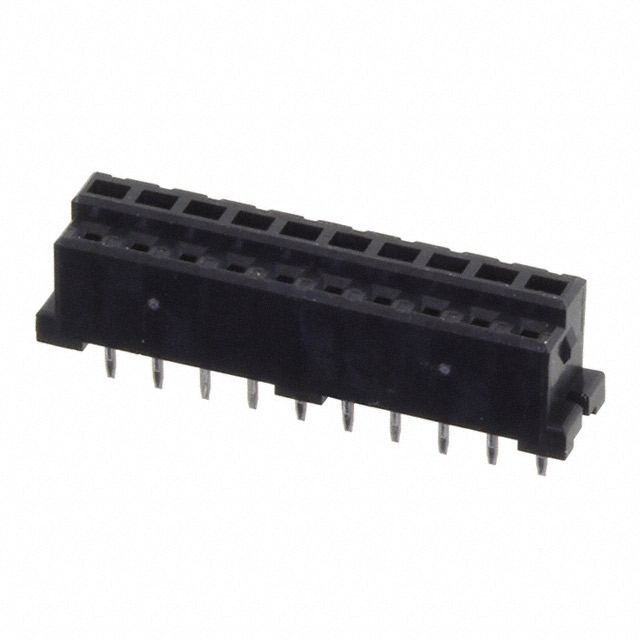

The Hirose DF3-10S-2DSA(50) is a 10-position board-to-board receptacle connector from the DF3 series. It features a 2.00mm (0.079 inch) mating pitch and utilizes through-hole termination for PCB mounting. The contacts are female sockets made of phosphor bronze with tin plating on both the mating surface and tails. Designed for reliable friction lock engagement, this component supports a rated current of 3A and a voltage of 30VAC. The housing is constructed from black polyamide (PA/nylon) with UL94 V-0 flammability rating, offering an insulation height of 5.90mm and compatible stacking heights of 6.6mm or 7.5mm.

Headers, Receptacles, Female Sockets Feature Summary

• Friction lock mechanism ensures secure board-to-board connection without additional fasteners.
• Low-profile design facilitates space-saving layouts in dense electronic assemblies.
• Square-shaped female socket contacts provide stable mating alignment.
• Through-hole termination allows for robust soldering to printed circuit boards.

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in industrial control systems
• Internal wiring connections within consumer electronics devices
• Signal transmission links in compact communication equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix designation to confirm contact plating type and packaging quantity. Ensure the procurement source provides official documentation confirming the part status, as availability may vary. Cross-reference the manufacturer datasheet for precise mechanical dimensions and handling instructions before integration into production lines.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a low-profile, 2.00mm pitch board-to-board solution is required. Consider the 3A current rating and 30VAC voltage limit against system requirements. Evaluate the 6.6mm or 7.5mm stacking height compatibility with adjacent components. Verify that the through-hole mounting method aligns with the manufacturing process capabilities.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Hirose DF3 series, which specializes in small, high-density connectors for board-to-board applications. The series offers various pin counts and configurations to support diverse electronic design needs while maintaining a consistent 2.00mm pitch standard across the family.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Hirose documentation for confirmed substitute part numbers. No direct public substitutes are listed for this specific configuration.
