DF3E-4P-2V(54)

Headers, Male Pins Overview

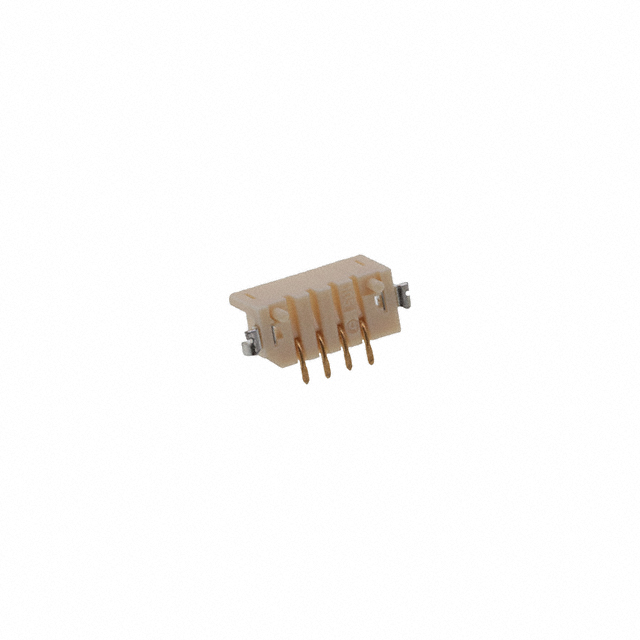

The DF3E-4P-2V(54) is a shrouded header connector from the Hirose DF3 series, designed for surface mount (SMD/SMT) applications. It features a 2 mm pitch and provides 4 positions in a single row configuration. The component utilizes male pin contacts made of brass with gold plating to ensure reliable signal transmission. Rated for 3 A current and 250 V voltage, it operates within a temperature range of -55°C to +105°C. The housing is constructed from beige polyamide (PA) plastic with a UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Shrouded design prevents misalignment during mating
• Gold-plated brass contacts for corrosion resistance
• Straight SMD mounting style for PCB integration

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix (54) against official datasheets to confirm contact plating and packaging details. Ensure compatibility with existing PCB footprint designs before procurement. Check for end-of-life status or alternative sourcing options as availability may vary by region.

Headers, Male Pins Selection Notes

Select this model when a low-profile, high-reliability connection is required for dense PCB layouts. The 2 mm pitch allows for compact spacing compared to standard 2.54 mm headers. Gold plating is preferred over tin for environments requiring long-term stability without oxidation concerns.

Headers, Male Pins Part Context

This part belongs to the DF3 series, which is characterized by its small footprint and high-density capabilities. The DF3E variant specifically denotes the enhanced version with improved mechanical locking features compared to earlier generations in the same family.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Hirose catalogs for direct replacements if this specific suffix is discontinued.
