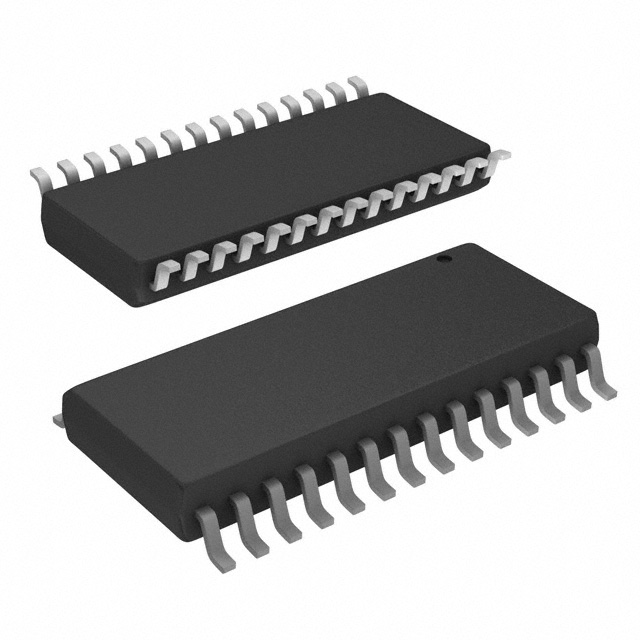

DG406BDW-T1-E3
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC MUX 16:1 60OHM 28SOIC
- Series：-
- Mfr：Vishay Siliconix
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Circuit：-
- Multiplexer/Demultiplexer Circuit：16:01
- On-State Resistance (Max)：60Ohm
- Channel-to-Channel Matching (ΔRon)：3Ohm
- Voltage - Supply, Single (V+)：7.5V ~ 44V
- Voltage - Supply, Dual (V±)：±5V ~ 20V
- Switch Time (Ton, Toff) (Max)：107ns, 88ns
- -3db Bandwidth：-
- Charge Injection：11pC
- Channel Capacitance (CS(off), CD(off))：6pF, 108pF
- Current - Leakage (IS(off)) (Max)：500pA
- Crosstalk：-
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package：28-SOIC
- Number of Circuits：1
Download product information
Overview
The DG406BDW-T1-E3 is a high-performance CMOS analog multiplexer featuring sixteen single-ended channels. It connects one of sixteen inputs to a common output via a 4-bit binary address and operates with supply voltages ranging from ±5 V to ±20 V, or a single supply up to 40 V. The device utilizes a wide-body SOIC-28 package in tape-and-reel format. Key electrical parameters include a maximum on-resistance of 74 Ω, transition time of 161 ns, break-before-make interval of 21 ns, and charge injection of 11 pC. It supports TTL-compatible logic inputs and functions within an operating temperature range of -40 °C to +85 °C.
Feature Summary
- Break-before-make switching action prevents momentary shorting of inputs during channel transitions.
- TTL-compatible control inputs allow direct interfacing with standard digital logic across the full temperature range.
- Epitaxial layer construction ensures latchup immunity under specified voltage conditions.
- Enable function allows resetting all switches to the off state for stacking multiple devices.
Applications
- High-speed data acquisition systems
- Audio signal routing and switching
- Automated test equipment (ATE) systems
- Avionics instrumentation
Procurement Notes
Verify the specific suffix configuration against current Vishay documentation before ordering. Confirm that the tape-and-reel packaging meets automated assembly requirements. Ensure the lead-free RoHS compliance status aligns with project specifications. Validate that the wide-body SOIC footprint matches the target PCB layout constraints.
Selection Notes
Select this component when a high channel count is required for single-ended signal routing. The wide-body package offers improved thermal dissipation compared to standard packages. Verify that the 74 Ω maximum on-resistance meets the signal integrity requirements of the application circuit. Consider the 40 V absolute maximum rating for high-voltage signal handling capabilities.
Part Context
This part belongs to the DG406B series of high-performance CMOS analog multiplexers manufactured by Vishay Siliconix. It shares functional similarities with the DG407B but provides a different channel configuration. The product line is designed for applications requiring low power consumption and high accuracy in signal switching environments.
Replacement Considerations
DG406BDN-T1-E3: Identical functionality in PLCC-28 package. DG406BDW-E3: Same performance in tube packaging. DG407BDW-T1-E3: Dual 8-channel differential configuration in the same package.
