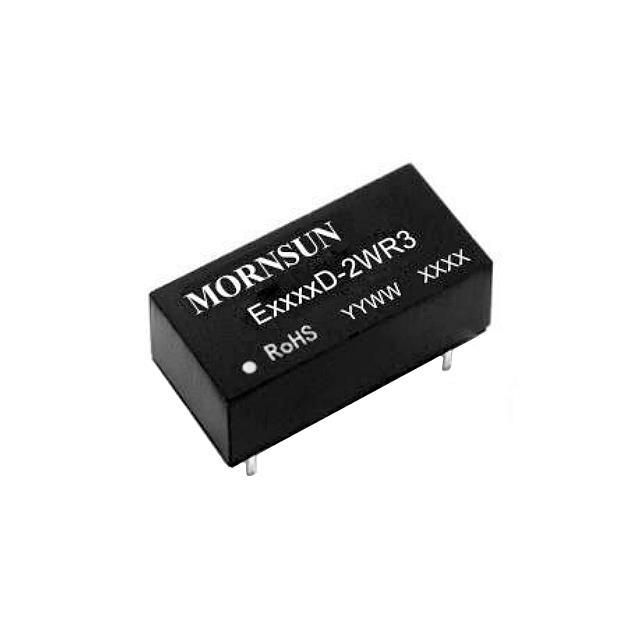

E0509D-2WR3

E0509D-2WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER +/-9V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for E0509D-2WR3

• Description：DC DC CONVERTER +/-9V 2W
• Series：E0509D-2WR3 (2W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：9V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：111mA, 111mA
• Power (Watts)：1.9 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：14-DIP Module, 6 Leads
• Size / Dimension：0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for E0509D-2WR3
