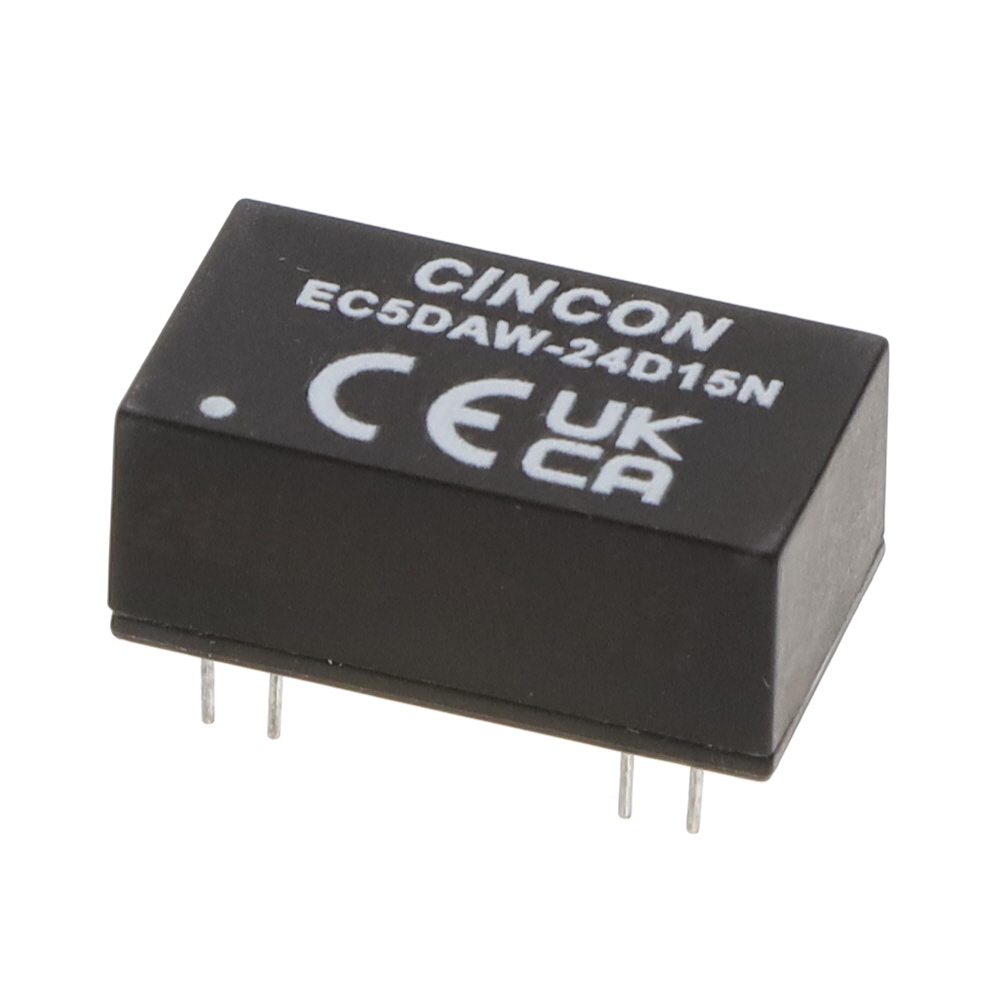

EC5DAW-24D15N

EC5DAW-24D15N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is PWR SUPP, BATT, CONDITIONERS. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC5DAW-24D15N

• Description：PWR SUPP, BATT, CONDITIONERS
• Series：EC5DAW (10W)
• Mfr：Cincon Electronics Co. LTD
• Package：Box
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：333mA, 333mA
• Power (Watts)：10 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：16-DIP Module, 7 Leads
• Size / Dimension：0.95" L x 0.54" W x 0.39" H (24.2mm x 13.7mm x 10.0mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CE, UKCA
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EC5DAW-24D15N
