ECS-80-18-23B-JGN-TR

Crystals Overview

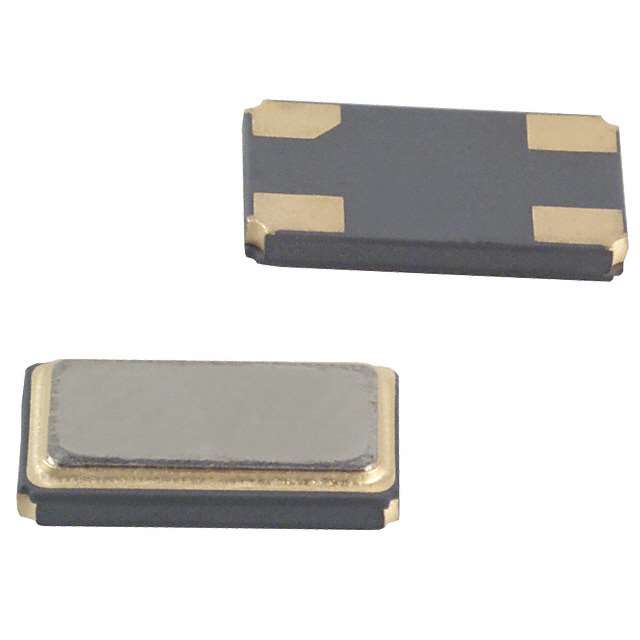

The ECS-80-18-23B-JGN-TR is a surface-mount quartz crystal oscillator manufactured by ECS Inc. It operates at a fundamental frequency of 8 MHz with a load capacitance of 18 pF. The component exhibits a frequency tolerance of ±20 ppm and a stability of 30 ppm over the operating temperature range. It features an equivalent series resistance (ESR) of 60 Ohms and supports a drive level of 100 uW. The device is housed in a compact ECX-32 package measuring 6 mm in length, 3.5 mm in width, and 1.1 mm in height. It functions reliably within a temperature range of -40°C to +85°C.

Crystals Feature Summary

• Compact SMD footprint designed for high-density PCB layouts
• High frequency stability suitable for precision timing applications
• Low equivalent series resistance for efficient circuit integration

Crystals Applications

• Precision timing circuits in electronic devices
• Microcontroller clock sources
• Communication equipment requiring stable frequency references

Crystals Procurement Notes

Verify the specific ESR value against the latest official datasheet, as sources indicate variations between 50 and 60 Ohms. Confirm the package dimensions match the required PCB footprint, noting potential discrepancies between 3.2mm and 3.5mm width specifications. Ensure the drive level requirements of the host circuit align with the component's 100 uW rating to prevent frequency shifts or damage during operation.

Crystals Selection Notes

Select this component when a stable 8 MHz reference is required in space-constrained designs. The ECX-32 package offers a balance between size and performance for general-purpose timing needs. Consider the ±20 ppm tolerance for applications where moderate frequency accuracy is sufficient. Verify that the operating temperature range of -40°C to +85°C meets the environmental conditions of the target system before finalizing the design.

Crystals Part Context

This part belongs to the ECX-32 series of surface-mount crystals from ECS Inc. The series is characterized by its small form factor and reliability for consumer and industrial electronics. The model number indicates the frequency, load capacitance, and package type, distinguishing it from other variants in the lineup that may offer different frequencies or tolerances.

Crystals Replacement Considerations

Direct substitutes must match the 8 MHz frequency, 18 pF load capacitance, and ECX-32 package dimensions. Verify compatibility regarding ESR and drive level specifications. Cross-reference with other manufacturers' 3225-sized crystals if pinout and electrical parameters are identical.
