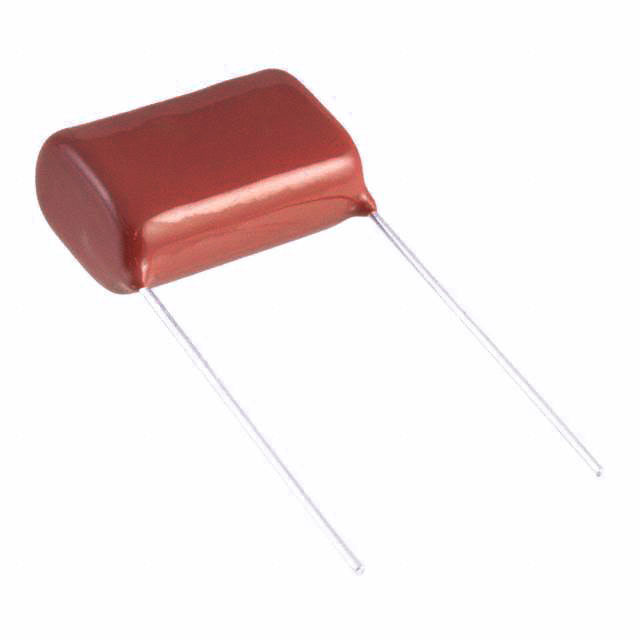

ECW-FD2J395JB

ECW-FD2J395JB is listed in the Film Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP FILM 3.9UF 5% 630VDC RADIAL. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for ECW-FD2J395JB

• Description：CAP FILM 3.9UF 5% 630VDC RADIAL
• Series：ECW-F(D)
• Mfr：Panasonic Electronic Components
• Package：Bulk
• Capacitance：3.9 µF
• Tolerance：±5%
• Voltage Rating - AC：-
• Voltage Rating - DC：630V
• Dielectric Material：Polypropylene (PP), Metallized
• Operating Temperature：-40°C ~ 105°C
• Mounting Type：Through Hole
• Package / Case：Radial
• Size / Dimension：0.996" L x 0.654" W (25.30mm x 16.60mm)
• Height - Seated (Max)：1.067" (27.10mm)
• Termination：PC Pins
• Lead Spacing：0.591" (15.00mm)
• Applications：EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
• Ratings：-
• Features：-

Film Capacitors datasheet and documents for ECW-FD2J395JB
