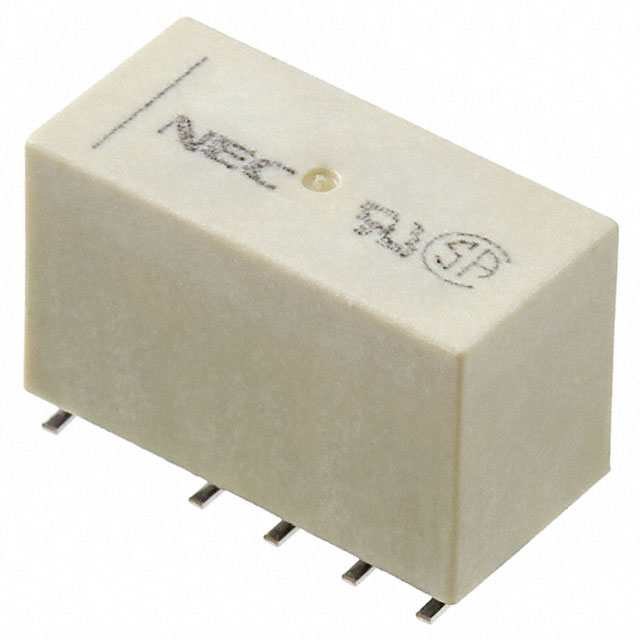

EE2-3TNUH-L

EE2-3TNUH-L is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists KEMET. Its product description is RELAY GENERAL PURPOSE DPDT 2A 3V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for EE2-3TNUH-L

• Description：RELAY GENERAL PURPOSE DPDT 2A 3V
• Series：EE2
• Mfr：KEMET
• Package：Tape & Reel (TR),Cut Tape (CT)
• Mounting Type：Surface Mount
• Coil Voltage：3VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：2:00 AM
• Switching Voltage：250VAC, 220VDC - Max
• Load - Max Switching：500VA, 440W
• Coil Current：46.7 mA
• Coil Type：Latching, Dual Coil
• Features：-
• Termination Style：Gull Wing
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：2.25 VDC
• Must Release Voltage：-
• Operate Time：2 ms
• Release Time：1 ms
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Alloy, Gold Alloy
• Approval Agency：CSA, TUV, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for EE2-3TNUH-L
