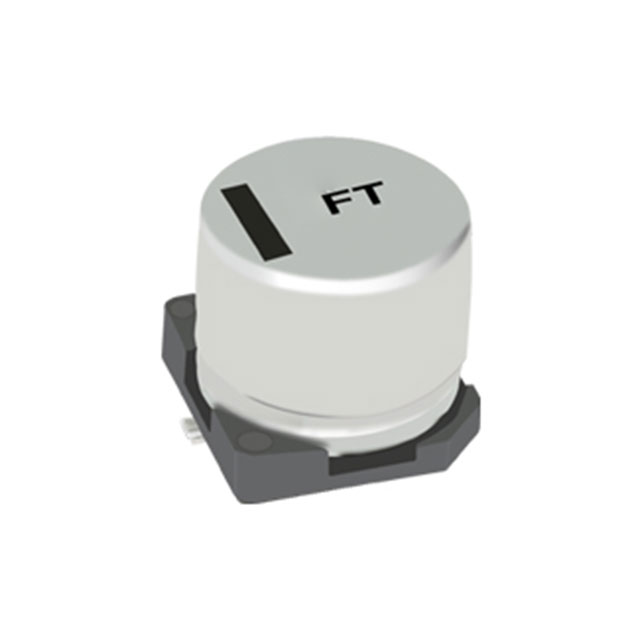

EEE-FT1E471AL

EEE-FT1E471AL is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 470UF 20% 25V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEE-FT1E471AL

• Description：CAP ALUM 470UF 20% 25V SMD
• Series：FT, Halogen Free
• Mfr：Panasonic Electronic Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：470 µF
• Tolerance：±20%
• Voltage - Rated：25 V
• ESR (Equivalent Series Resistance)：80mOhm @ 100kHz
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：552.5 mA @ 120 Hz
• Ripple Current @ High Frequency：850 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.413" (10.50mm)
• Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD

Aluminum Electrolytic Capacitors datasheet and documents for EEE-FT1E471AL
