EJH-113-01-S-D-SM-LC-11-P

Headers, Male Pins Overview

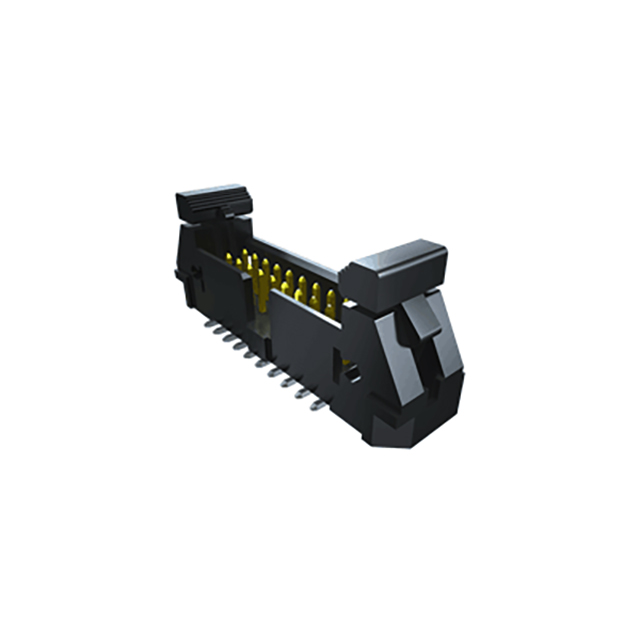

The EJH-113-01-S-D-SM-LC-11-P is a board connector from the Samtec EJH series, designed for surface mount applications. It features a male configuration with 26 contacts arranged in two rows. The connector utilizes a 0.1-inch (2.54 mm) pitch and includes latch and eject mechanisms for secure mating. Constructed with phosphor bronze terminals and liquid crystal polymer insulation, it offers gold plating over nickel for reliable electrical performance.

Headers, Male Pins Feature Summary

• Surface mount receptacle design with integrated latch and eject functionality
• Dual-row male contact arrangement for high-density interconnects
• Liquid crystal polymer insulator material for thermal stability

Headers, Male Pins Applications

• High-density board-to-board connections
• Compact electronic assemblies requiring secure latching
• Automotive electronics modules
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix LC-11-P against official Samtec documentation to confirm lead time and availability status. Ensure compatibility with mating connectors in the FFSD or FFTP series as per the EJH family specifications. Cross-reference RoHS compliance and material certifications with current manufacturer declarations before procurement.

Headers, Male Pins Selection Notes

Select this component when a surface mount header with positive locking is required. The 0.1-inch pitch suits standard PCB layouts. Confirm that the phosphor bronze terminal material and gold plating meet the environmental and conductivity requirements of the target application. Verify mechanical fit within the assembly constraints.

Headers, Male Pins Part Context

This part belongs to the EJH shrouded IDC ejector header series by Samtec. These headers are engineered for robust connections in space-constrained environments. The series supports various termination styles and plating options to accommodate different manufacturing processes and operational conditions.

Headers, Male Pins Replacement Considerations

Consult Samtec's official substitution guide for direct replacements. Generic equivalents may not match the latch mechanism or pitch accuracy. Verify pin count and row configuration before considering alternative suppliers.
