ELF-14M030E

Common Mode Chokes Overview

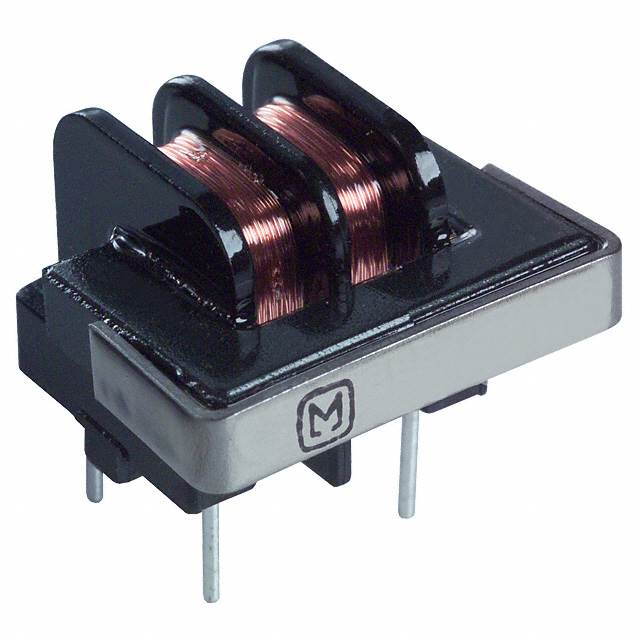

The Panasonic ELF-14M030E is a through-hole common mode choke designed for line filtering applications. It supports a maximum DC current of 300 mA and features a typical maximum DC resistance of 2.3 Ohms with a tolerance of 20%. The component operates within a temperature range of -20°C to +115°C. Classified as a two-line common mode filter, it is intended for noise suppression in electronic circuits requiring reliable electromagnetic interference mitigation.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for dual-line configurations
• Designed for through-hole mounting on printed circuit boards
• Constructed for operation in environments ranging from -20°C to +115°C

Common Mode Chokes Applications

• Common mode line filtering in power supply circuits
• Electromagnetic interference suppression in portable devices
• Noise reduction in battery charger systems

Common Mode Chokes Procurement Notes

Verify the specific manufacturing date code and RoHS compliance status upon order confirmation, as this part may be subject to availability changes. Confirm that the through-hole package dimensions match the target PCB footprint requirements. Ensure that the 300 mA current rating and 2.3 Ohm DC resistance specifications align with the design constraints of the final application to prevent performance degradation or thermal issues during operation.

Common Mode Chokes Selection Notes

Select this component when a through-hole solution is required for common mode noise attenuation in low-current applications. The 300 mA rating suits compact power stages where space allows for axial or radial leaded components. Consider the 2.3 Ohm DC resistance impact on voltage drop if used in series with sensitive signal lines. Verify that the operating temperature range meets the environmental conditions of the end-use device.

Common Mode Chokes Part Context

This component belongs to the ELF-14 series of common mode chokes manufactured by Panasonic Industry. The series offers various inductance and current ratings tailored for different filtering needs. As a through-hole device, it provides mechanical stability compared to surface-mount alternatives, making it suitable for applications requiring robust physical connections and high reliability in consumer electronics and industrial control systems.

Common Mode Chokes Replacement Considerations

Check Panasonic's official documentation for direct cross-references within the ELF-14 series. Verify that any substitute maintains the same 300 mA current handling and 2.3 Ohm DC resistance characteristics. Ensure the replacement component supports through-hole mounting and matches the physical lead spacing of the original design.
