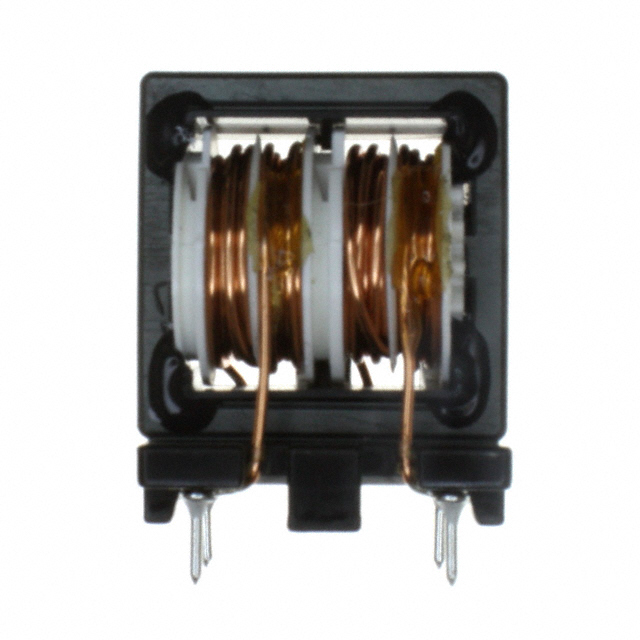

ELF-22V060A

Description：CMC 6A 2LN TH
Series：V
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:2686ccf46f85 Category: Common Mode Chokes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ELF-22V060A is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 6A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for ELF-22V060A

Description：CMC 6A 2LN TH
Series：V
Mfr：Panasonic Electronic Components
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：25mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.260" L x 0.906" W (32.00mm x 23.00mm)
Height (Max)：1.535" (39.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for ELF-22V060A

ELF-22V060A

Common Mode Chokes Overview

The ELF-22V060A is a two-line common mode choke manufactured by Panasonic Electronic Components, designed for through-hole mounting. It supports a current rating of 6A with a typical DC resistance (DCR) of 25mOhm. The component features a maximum height of 39.00mm and is classified as obsolete. It is RoHS non-compliant and contains lead.

Common Mode Chokes Feature Summary

Two-line common mode filtering capability
Through-hole mounting configuration
High current handling capacity

Common Mode Chokes Applications

Embedded control applications

Common Mode Chokes Procurement Notes

Verify the obsolete status and RoHS non-compliance before integration. Confirm lead content requirements against target market regulations. Source only from authorized distributors to ensure authenticity. Check date codes for storage history. Validate mechanical dimensions against PCB layout constraints.

Common Mode Chokes Selection Notes

Consider the 6A current rating and low DCR for power line filtering needs. Evaluate the through-hole form factor for assembly compatibility. Note the obsolete status may impact long-term supply. Assess lead-based composition against environmental compliance standards. Compare physical height constraints with enclosure designs.

Common Mode Chokes Part Context

This component belongs to the ELF-22V series of common mode chokes from Panasonic. It shares design characteristics with related models like ELF-22V040B and ELF-22V020C, differing primarily in current ratings and specific electrical parameters within the same through-hole package family.
