ELF-24V100A

Common Mode Chokes Overview

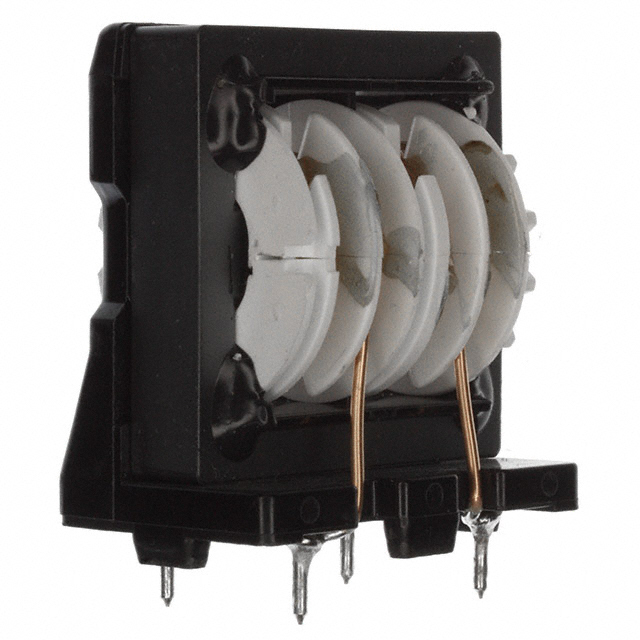

The ELF-24V100A is a single-phase EMI filter manufactured by Panasonic Electronic Components. It features through-hole mounting with dimensions of 37 mm in length and 41.5 mm in height. The component utilizes JESD-609 code e2 specifications for its material composition.

Common Mode Chokes Applications

• Single-phase EMI filtering applications
• Through-hole mounting circuits requiring common mode noise suppression

Common Mode Chokes Procurement Notes

Verify the specific manufacturer documentation to confirm current production status, as some sources indicate this part may be obsolete. Ensure compatibility with required current handling capabilities and physical mounting constraints before integration into design schematics.

Common Mode Chokes Selection Notes

Select this component for applications necessitating a single-phase EMI filter with through-hole installation. Consider the specified physical dimensions and current rating requirements when evaluating suitability for the target circuit topology.

Common Mode Chokes Part Context

This component belongs to the Panasonic Electronic Components lineup of electromagnetic interference filters. It is designed to suppress common mode noise in electrical circuits, utilizing a metal composite core material known for low saturation and stable performance over temperature variations.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official Panasonic catalogs or authorized distributors for verified cross-reference information.
